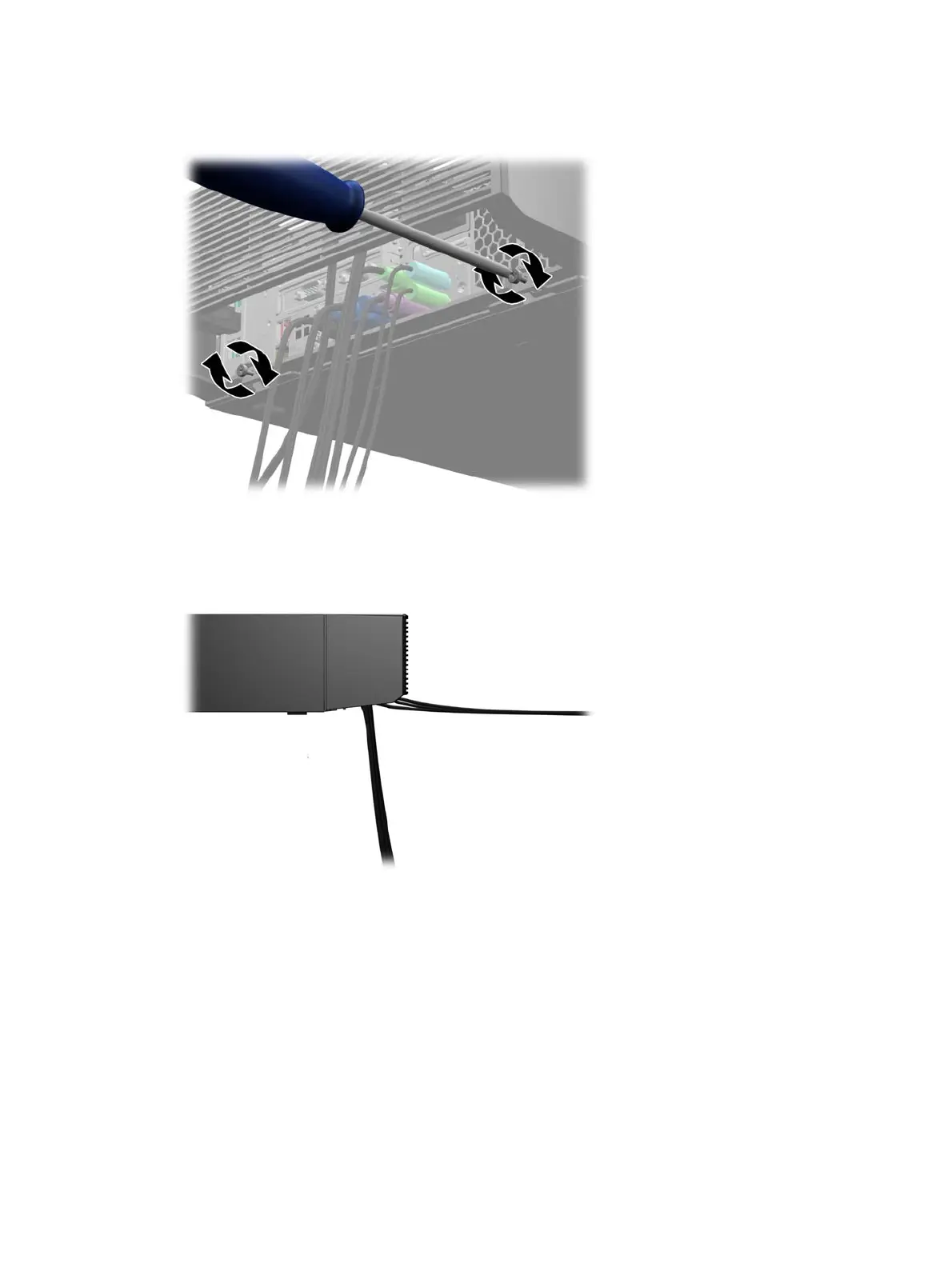

3. Tighten the two captive screws on the bottom of the port cover to secure it in place.
Figure 1-6 Securing the Port Cover
4. The port cover is designed to allow cables to route out of the back of the computer horizontally
or vertically.
Figure 1-7 Cable Routing
Serial Number Location
Each computer has a unique serial number and product ID number located on the back or side of the
computer. Keep these numbers available for use when contacting customer service for assistance.
6 Chapter 1 Product Features
