Installing an Optical Drive Bezel
On some models there is a driveless bezel in place of the optical drive bezel that must be replaced
with an optical drive bezel if you are installing an optical drive. To install an optical drive bezel:
1. Remove the access panel and front bezel.
2. Press each of the clips that secure the driveless section of the bezel to the front bezel in the
direction shown below to remove the driveless bezel.

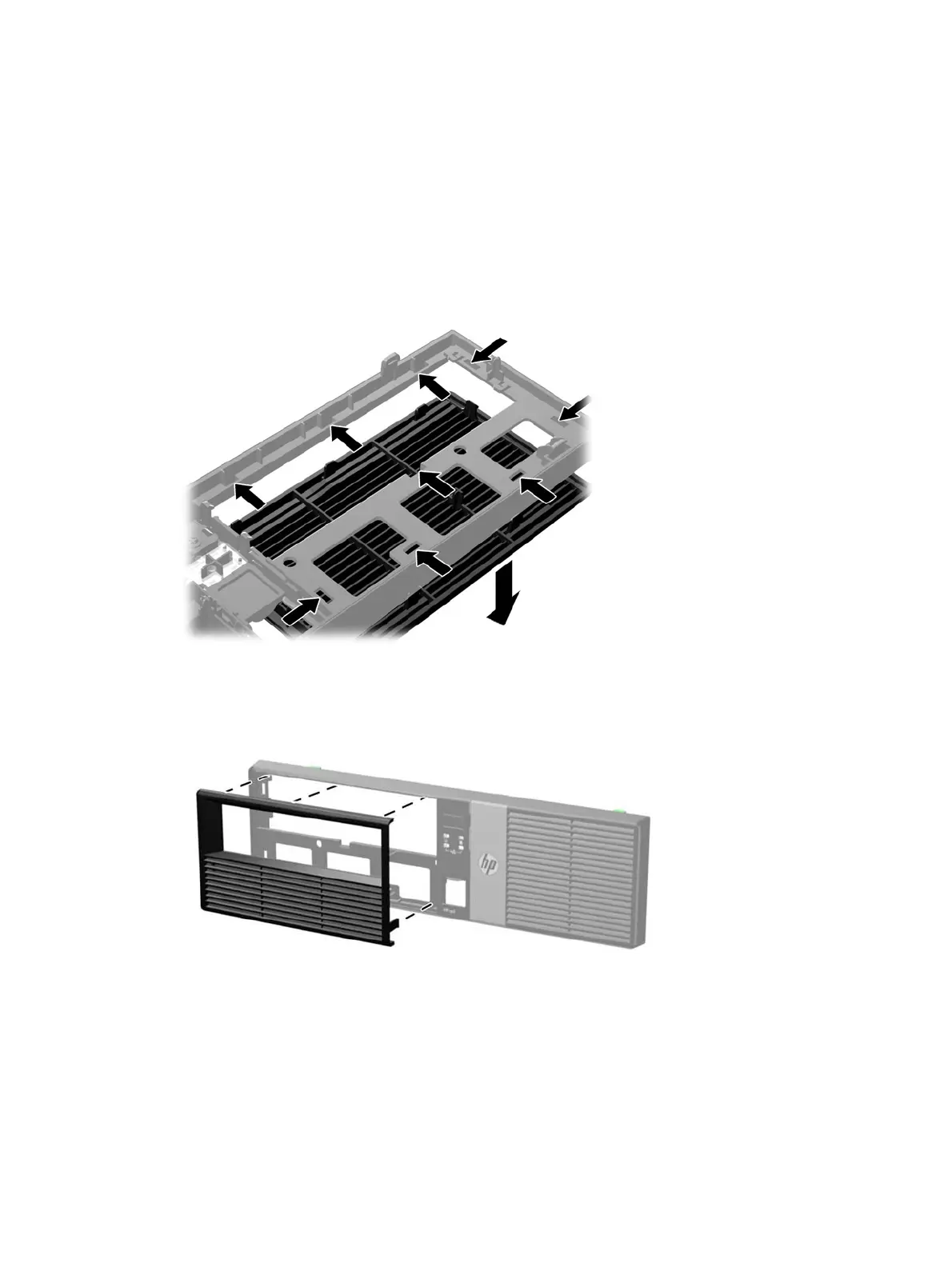

Figure 2-4 Removing the Driveless Bezel
3. Insert the clips on the optical drive bezel into the slots on the front bezel ensuring that the optical
drive bezel snaps securely in place.
Figure 2-5 Installing the Optical Drive Bezel
10 Chapter 2 Hardware Upgrades
