EL-MF877-00 Page 4
Template Revision B
PSG instructions for this template are available at EL-MF877-01

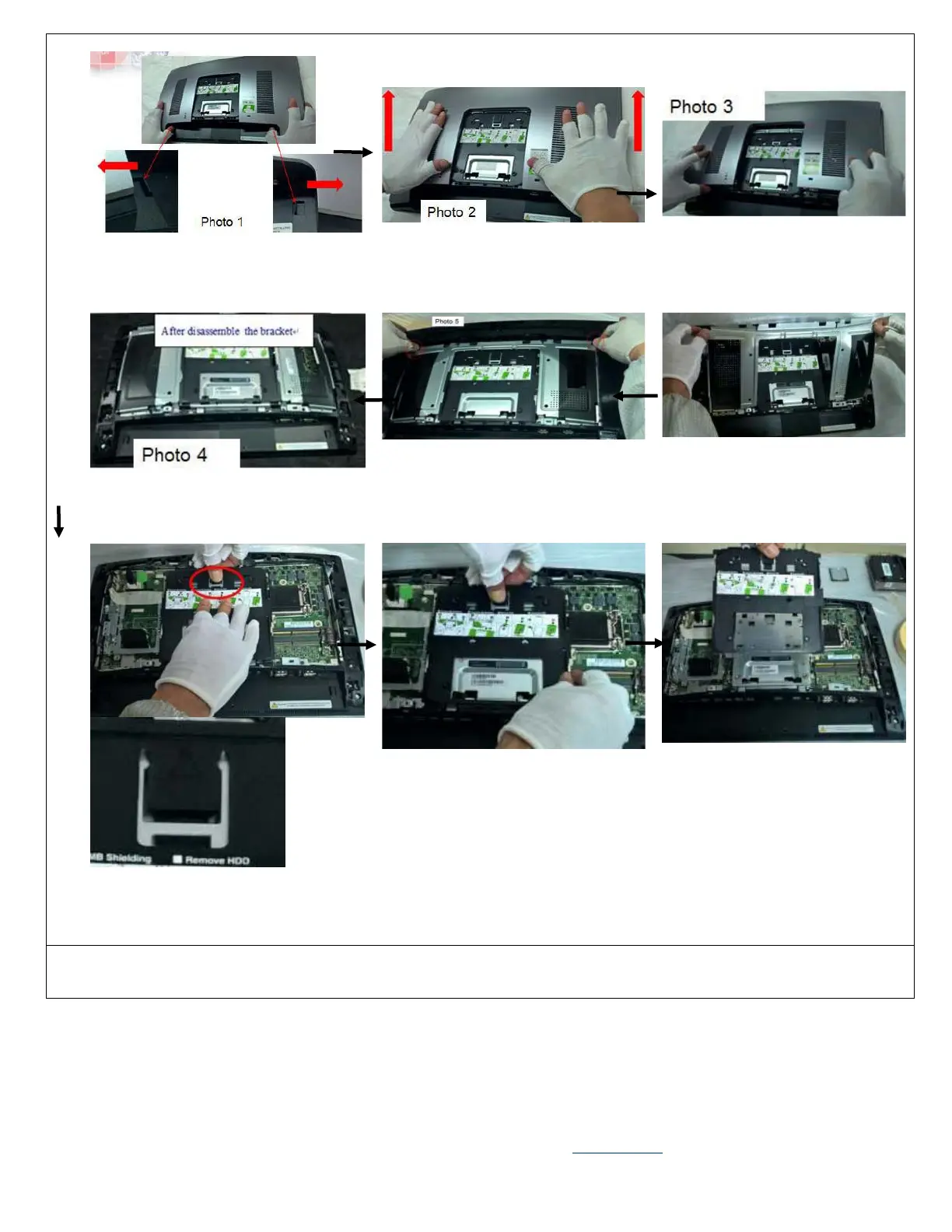

Push the button on the middle bezel to
each side，see photo 1
Disassemble the back cover by pulling
it upward and cover See photo 2.
Take off the rear cover, see photo 3
Disassemble the
bracket, see photo 4
Disassemble the bracket by the red
circle marked position and take off
the bracket, see photo 5
Lift up the bracket,see photo 6
Pressing the visa cover hook and push
it to the direction show in the photo 7,8
Disassembly process (Installing Wireless Card)
To Next Page
