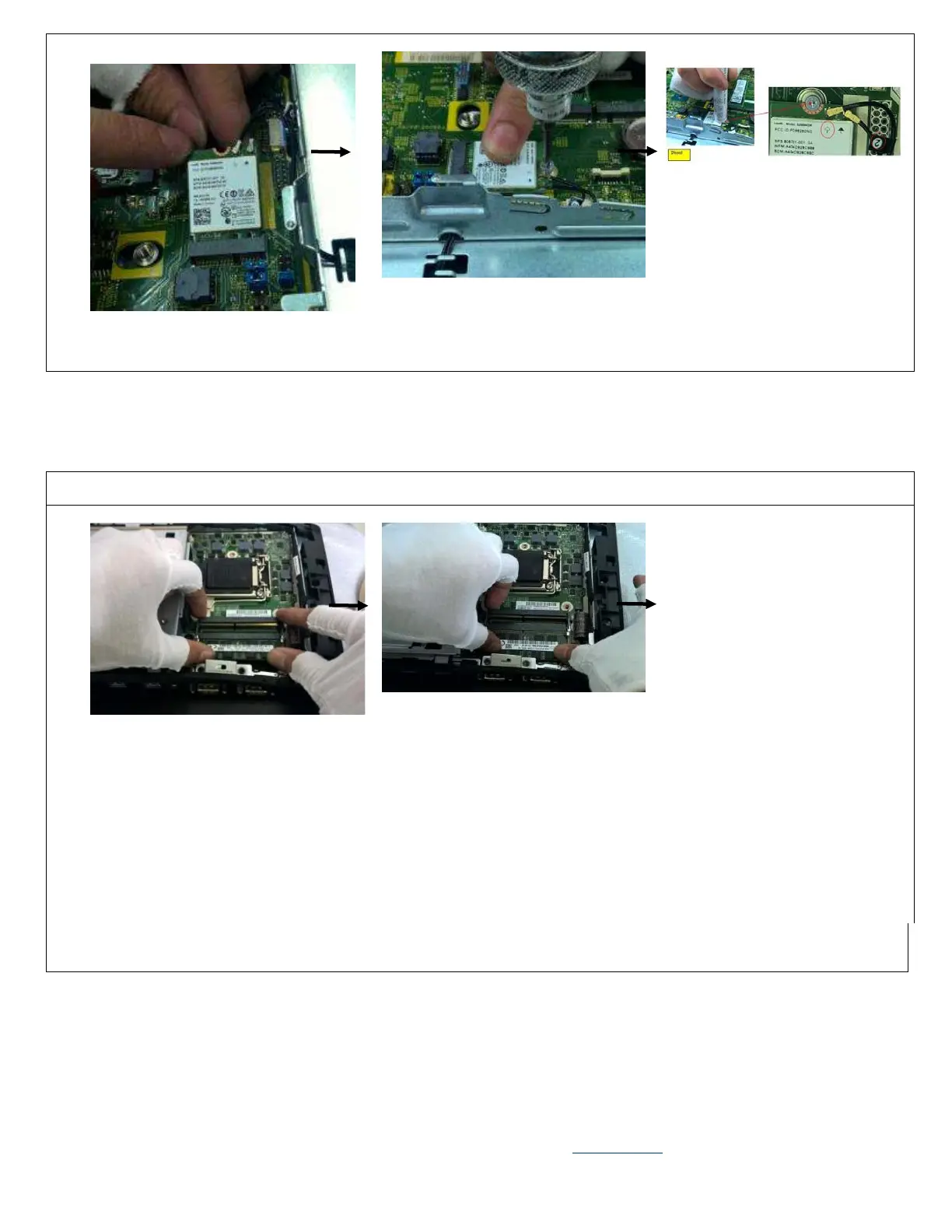

Install the wireless card atan angle of
Fasten WIFI screw*1pcs as show in
photo 21.5 + /-0.2Kgf.cm Screw
driver: #1(Crosshead
Using pressing fixture to insert
cable in location“2”.Routing the
cable See photo3&4 Using pressing
fixture to insert cable in location“
1”.Routing the cable See photo3&4
Final cable routing for WLAN (
Photo 4)
Disassembly process (Installing DIMM)
Take the DIMM and insert in DIMM slot
at an angle of 45 degree.See photo 1
Press the DIMM to confirm the DIMM
insert rightly See photo 2
Disassembly process (Do not remove the HDD cage)
