Server component identification 11
* Depending on the model of the server, slot 1 or slot 2 will be pre-populated with a
storage controller. If the expansion slot is populated with the standard PCI-X storage
controller card, it should not be converted to PCI Express.

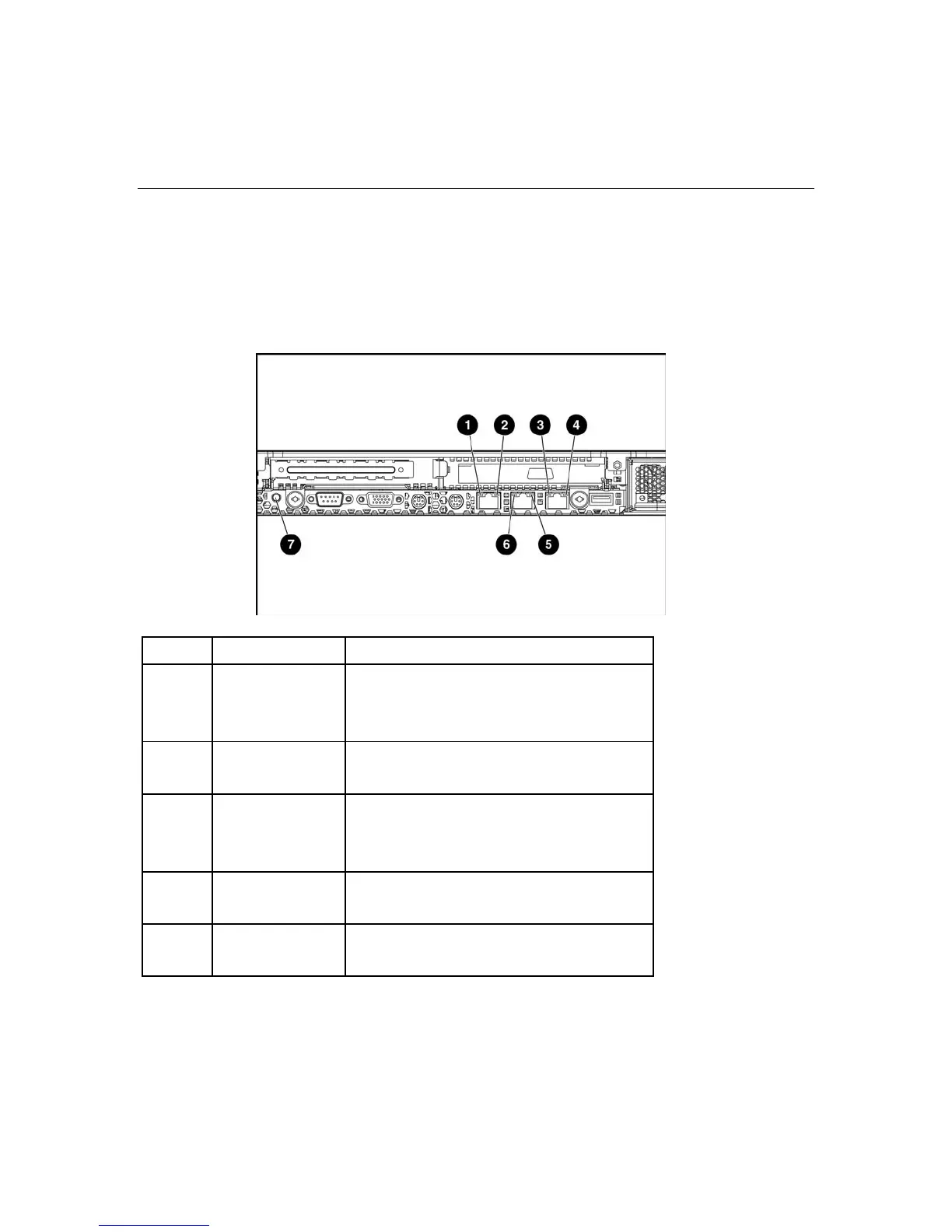

Rear panel LEDs and buttons
Item Description Status
1 iLO activity Green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
2 iLO link Green = Link exists.
Off = No link exists.
3 10/100/1000
NIC 2 activity
Green = Link exists.
Flashing green = Activity exists.
Off = No link exists.
4 10/100/1000
NIC 2 link
Green = Link exists.
Off = No link exists.
5 10/100/1000
NIC 1 link
Green = Link exists.
Off = No link exists.
