FC4-16IP components

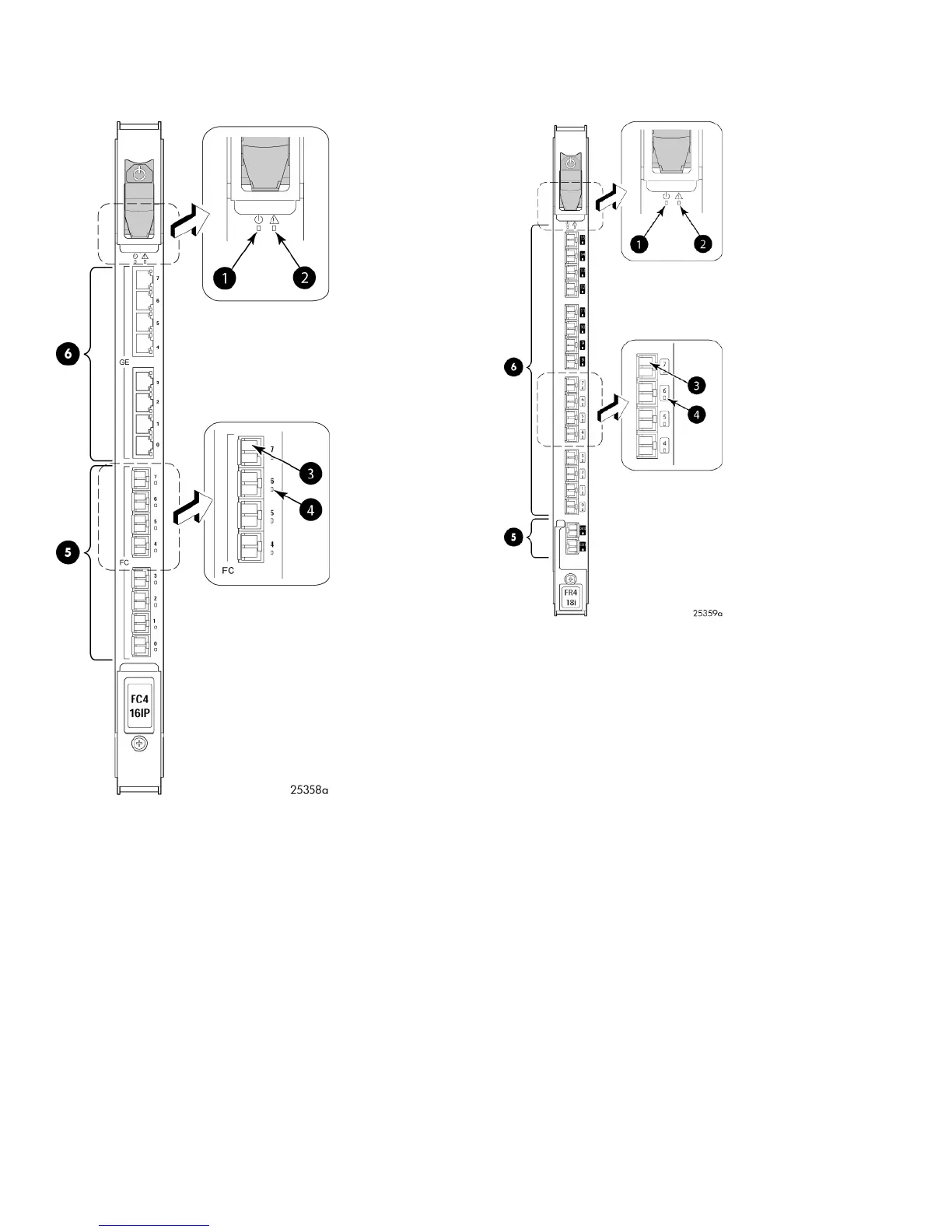

Figure 16 FC4-16IP
2. Status LED1. Power LED
4. Port status LED3. FC Port
6. GbE ports 0–75. FC ports 0–7
FR4-18i components
Figure 17 FR4-18i blade
2. Status LED1. Power LED
4. Port status LED3. FC Port
6. FC ports 0–155. GbE ports 0–1
