Antenna board
Description Spare part number
Antenna (includes WLAN antenna cable and transceiver) 796789-001
Before removing the antenna board, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power adapter cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 13).
5. Remove the mid-frame cover (see Mid-frame cover on page 14).
6. Disconnect the battery (see Battery on page 15).

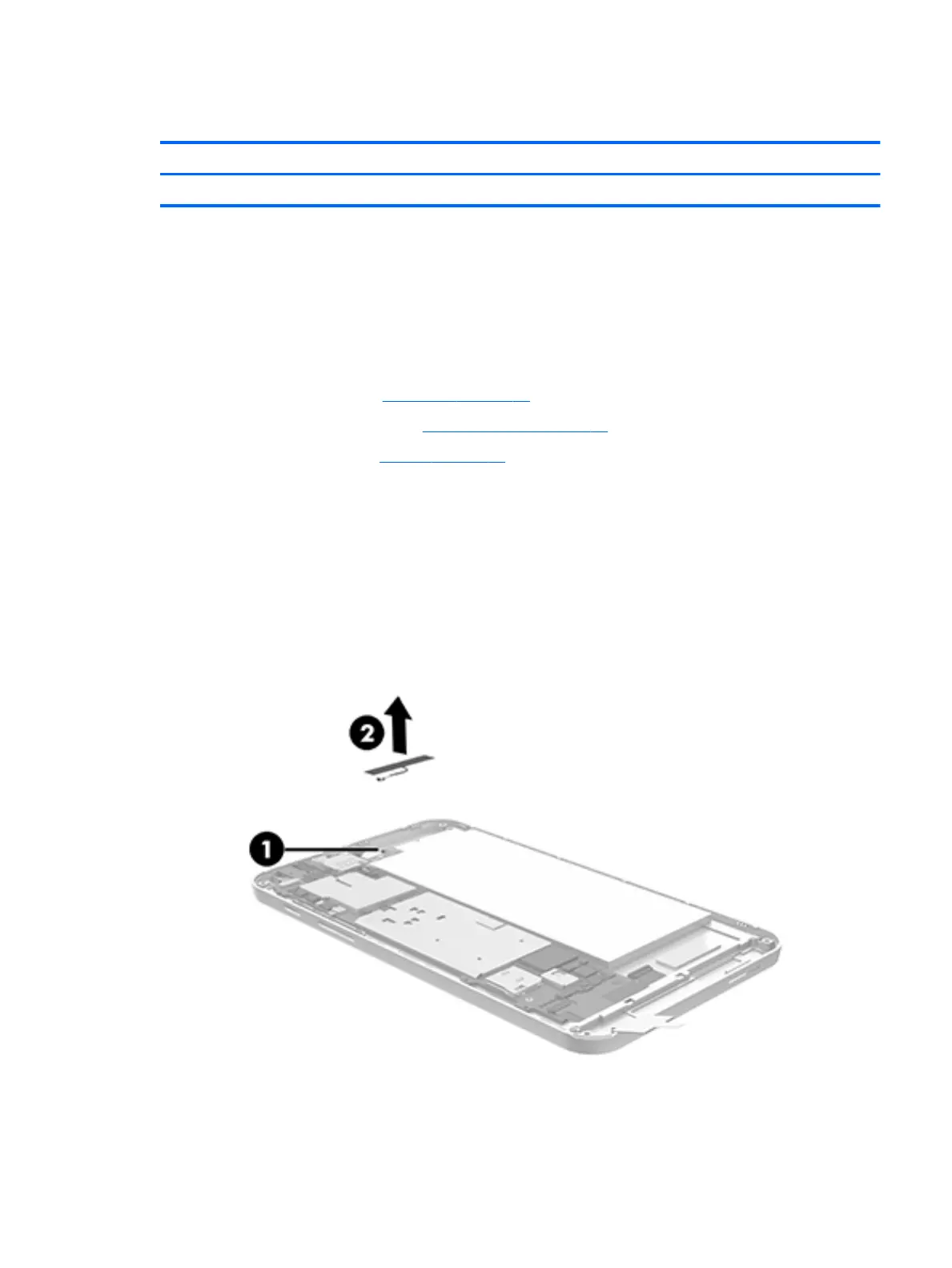

Remove the antenna board:
1. Disconnect the antenna board cable (1) from the system board.
2. Detach the antenna board (2) from the display panel assembly. (The antenna board is attached to the
display panel assembly with double-sided adhesive.)
3. Remove the antenna board and cable.
Reverse this procedure to install the antenna board.
