Power button board
Description Spare part number
Power button board 796791-001
Before removing the power button board, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and
then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power adapter cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see Back cover on page 13).
5. Remove the mid-frame cover (see Mid-frame cover on page 14).
6. Disconnect the battery (see Battery on page 15).

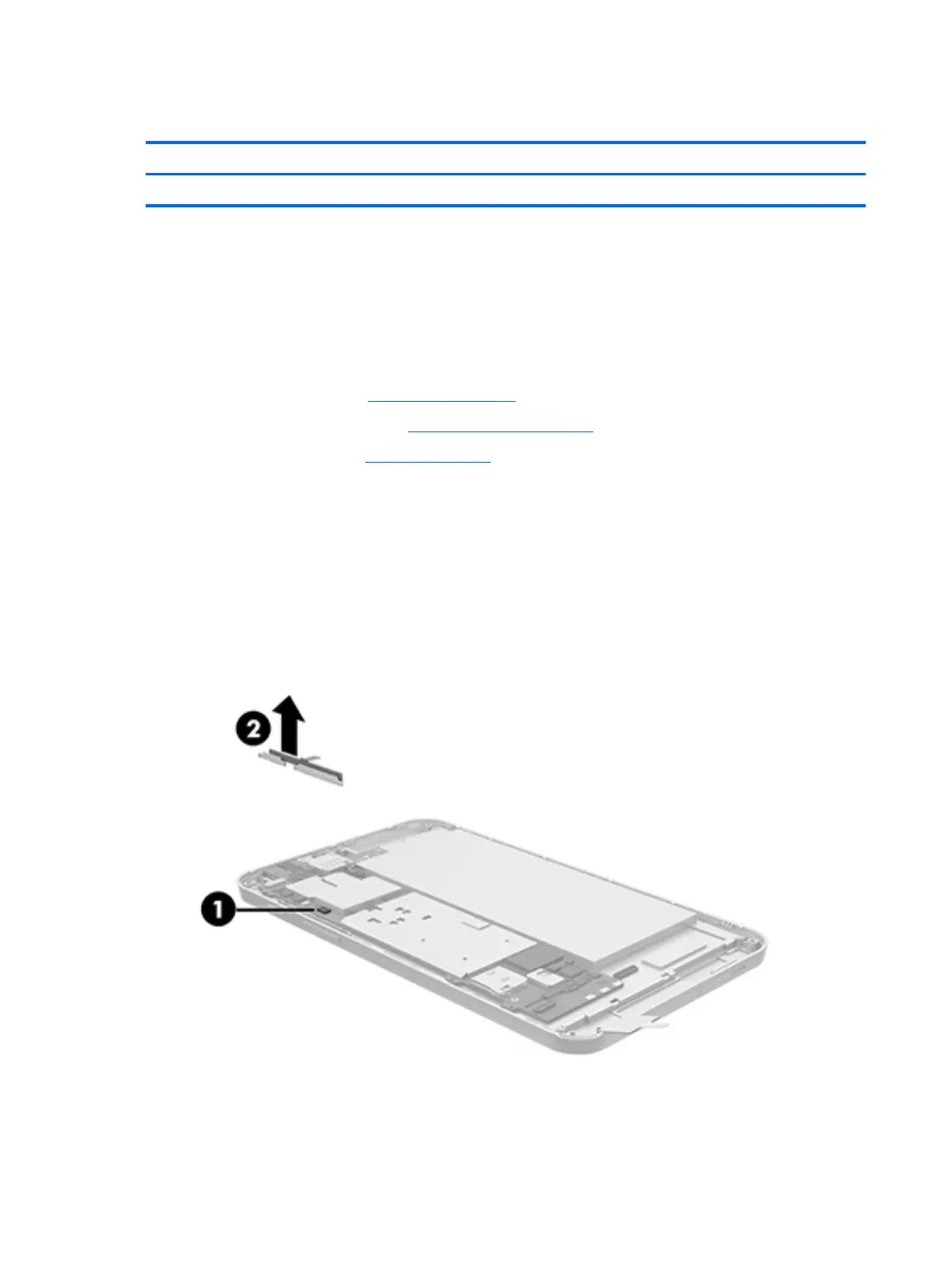

Remove the power button board:
1. Release the ZIF connector (1) to which the power button board cable is attached, and then disconnect
the power button board cable from the system board.
2. Remove the power button board (2).
Reverse this procedure to install the power button board.
