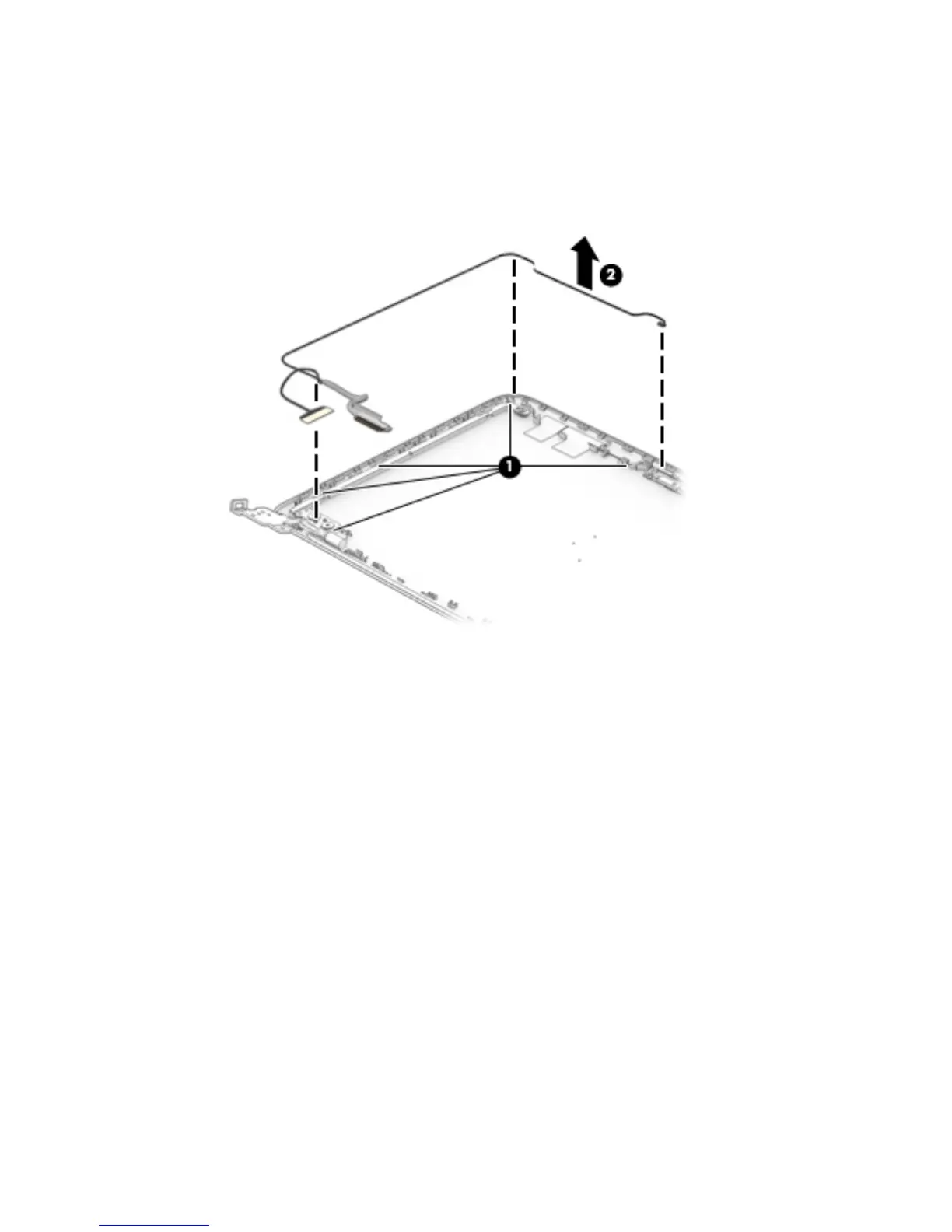

b. Remove the display panel cable (2).
The display panel cable includes the webcam/microphone module cable and is available using the
following spare part numbers:
792771-001: Models without a touch screen and without WWAN
798215-001: Models without a touch screen and with WWAN
11. If it is necessary to replace the WLAN antenna cable and transceiver:
a. Detach the antenna transceivers (1) from the display back cover. (The transceivers are attached to
the display back cover with double-sided adhesive.)
b. Release the shielding tape (2) that secures the antenna cables to the display back cover.
54 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
