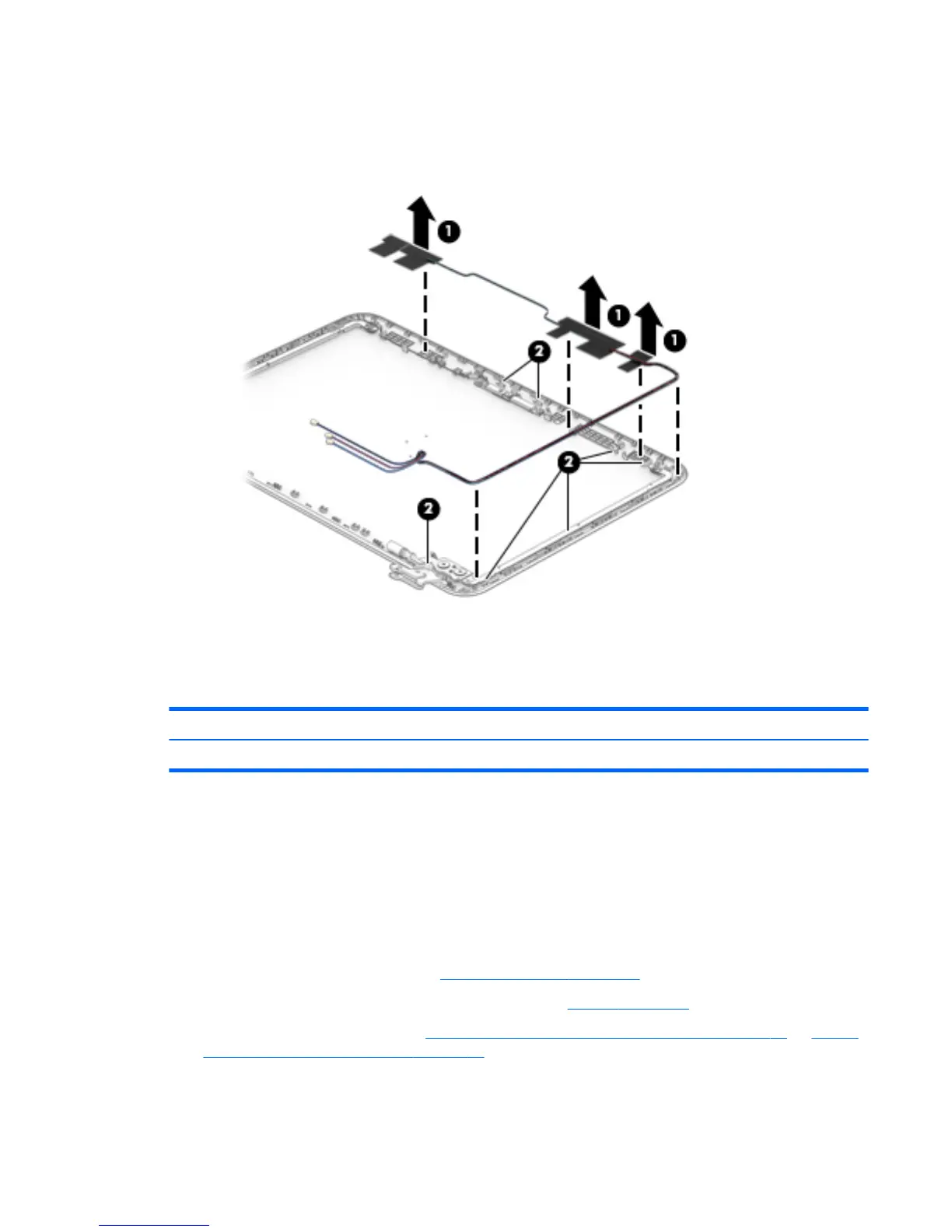

c. Release the antenna cables from the retention clips (2) and channel built into the top edge and
right side of the display back cover.
The antenna cables and transceivers are included in the WLAN Antenna Kit, spare part number
792758-001 and WWAN Antenna Kit, spare part number 792757-001.
Reverse this procedure to reassemble and install the display assembly.
Power connector cable
Description Spare part number
Power connector cable (includes tape) 796086-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the keyboard/top cover (see Keyboard/top cover on page 29).
5. Disconnect the battery cable from the system board (see Battery on page 41).
6. Remove the display assembly (see Display assembly – non-touch screen models on page 48) or Display
assembly – touch screen models on page 56.
Remove the power connector cable:
Component replacement procedures 61
