CAUTION: Before turning the display panel upside down, make sure the work surface is clear of
tools, screws, and any other foreign objects. Failure to follow this caution can result in damage to
the display panel.

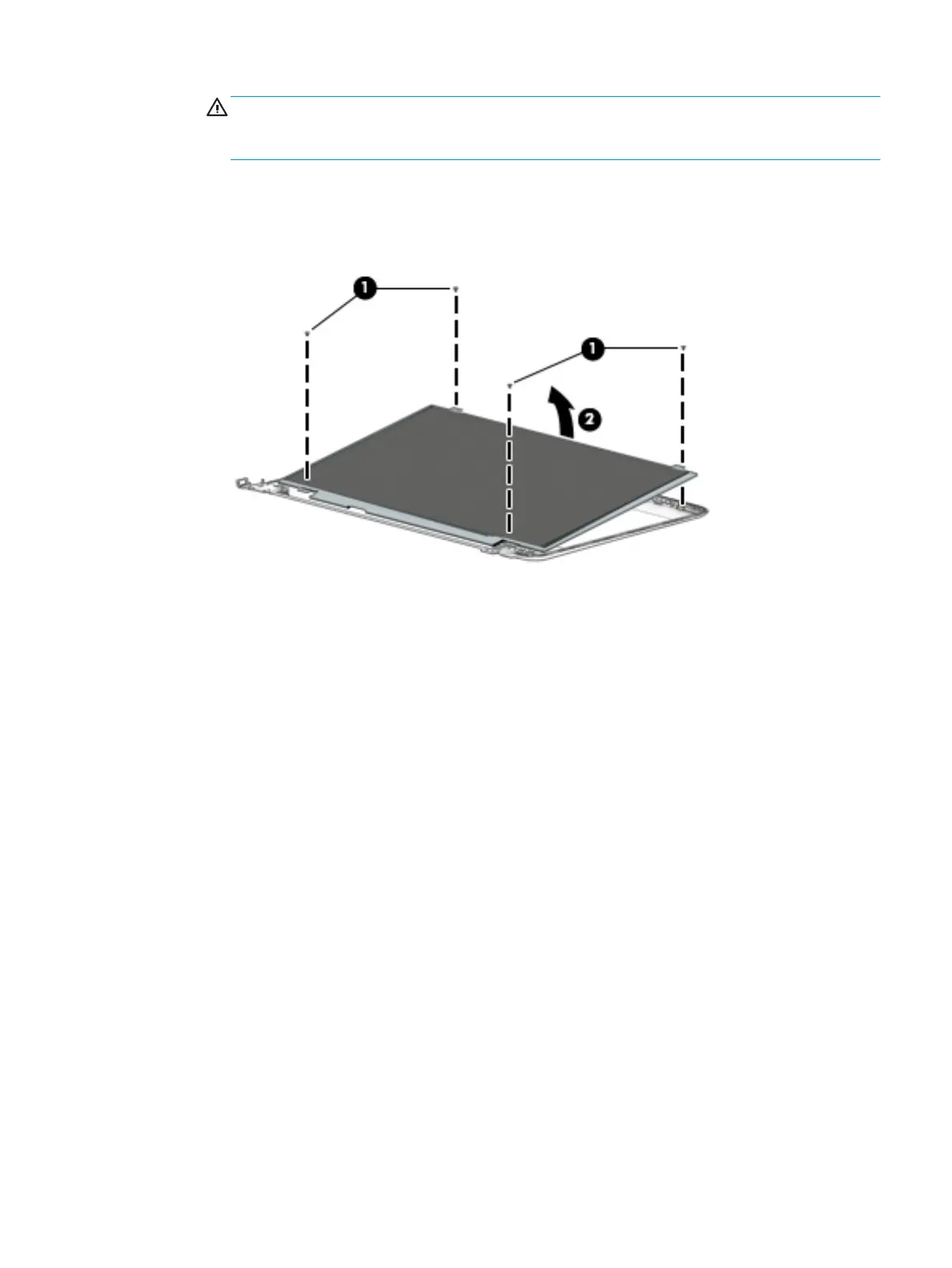

b. Lift the top edge of the display panel (2) and swing it up and forward until it rests upside down in
front of the display back cover.
The raw display panel is available using spare part number 847664-005 for an HD panel and
847660-010 for an FHD display.
c. Release the adhesive strip (1) that secures the display panel cable connector to the display panel.
d. Disconnect the display panel cable (2) from the display panel.
Component replacement procedures 39
