e. Remove the display panel from the computer (3).

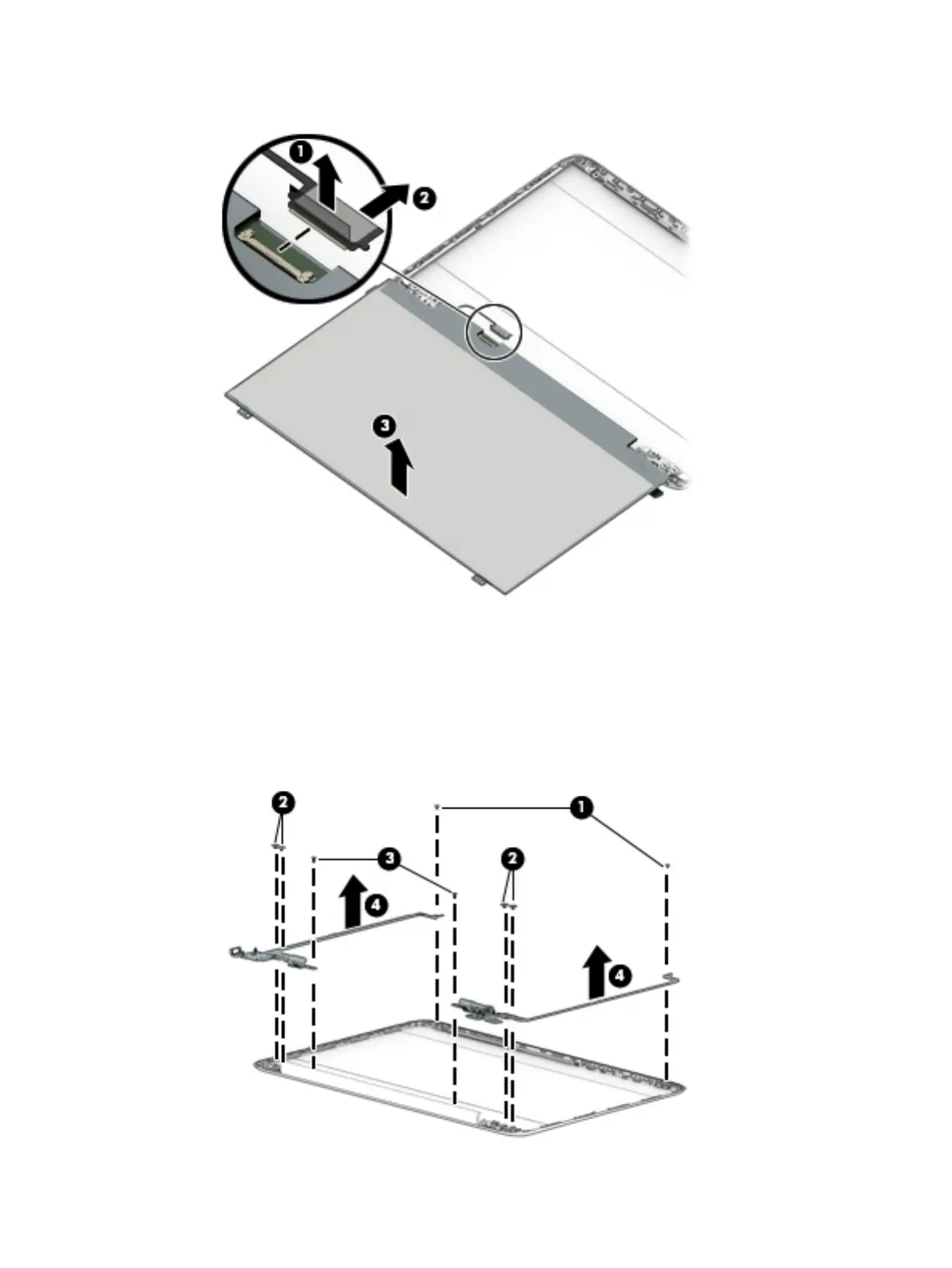

7. If it is necessary to replace the display hinges:
a. Remove the two Phillips PM2.0×3.0 screws (1) on the top of the hinges.
b. Remove the four Phillips PM2.5×2.5 screws (2) on the outside bottom of the hinges and the two
Phillips PM2.5×4.0 screws (3) at the inside bottom of the hinges.
c. Remove the display hinges (4).
The display hinges are included in the Display Hinge Kit, spare part number 905560-001.
40 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
