Populating SODIMM sockets

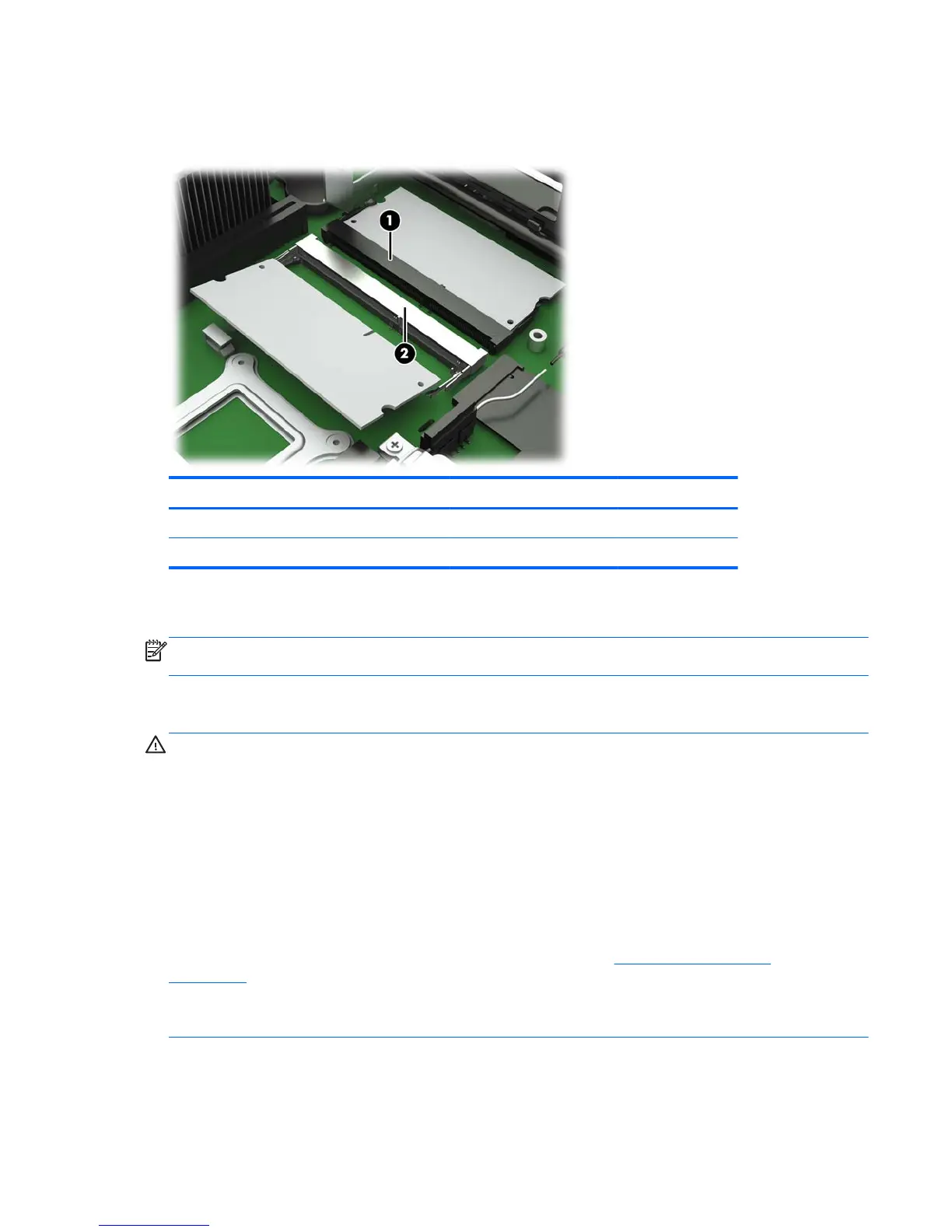

There are two SODIMM sockets on the system board. The sockets are labeled DIMM1 and DIMM2.
Item Description System Board Label Socket Color
1 SODIMM1 socket DIMM1 Black
2 SODIMM2 socket DIMM2 White
The system operates in single-channel mode.
NOTE: If both SODIMM sockets are populated with dual-sided SODIMMs, the system memory
speed is reduced to 1333 MHz.
Installing SODIMMs
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power
to drain before adding or removing memory modules. Regardless of the power-on state, voltage is
always supplied to the memory modules as long as the computer is plugged into an active AC outlet.
Adding or removing memory modules while voltage is present may cause irreparable damage to the
memory modules or system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is
important to use memory modules with gold-plated metal contacts to prevent corrosion and/or
oxidation resulting from having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before
beginning the following procedures, be sure that you are discharged of static electricity by briefly
touching a grounded metal object. For more information, refer to
Electrostatic discharge
on page 42.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as USB flash drives, from the computer.
Installing additional memory 17
