HP t620 PLUS User Manual

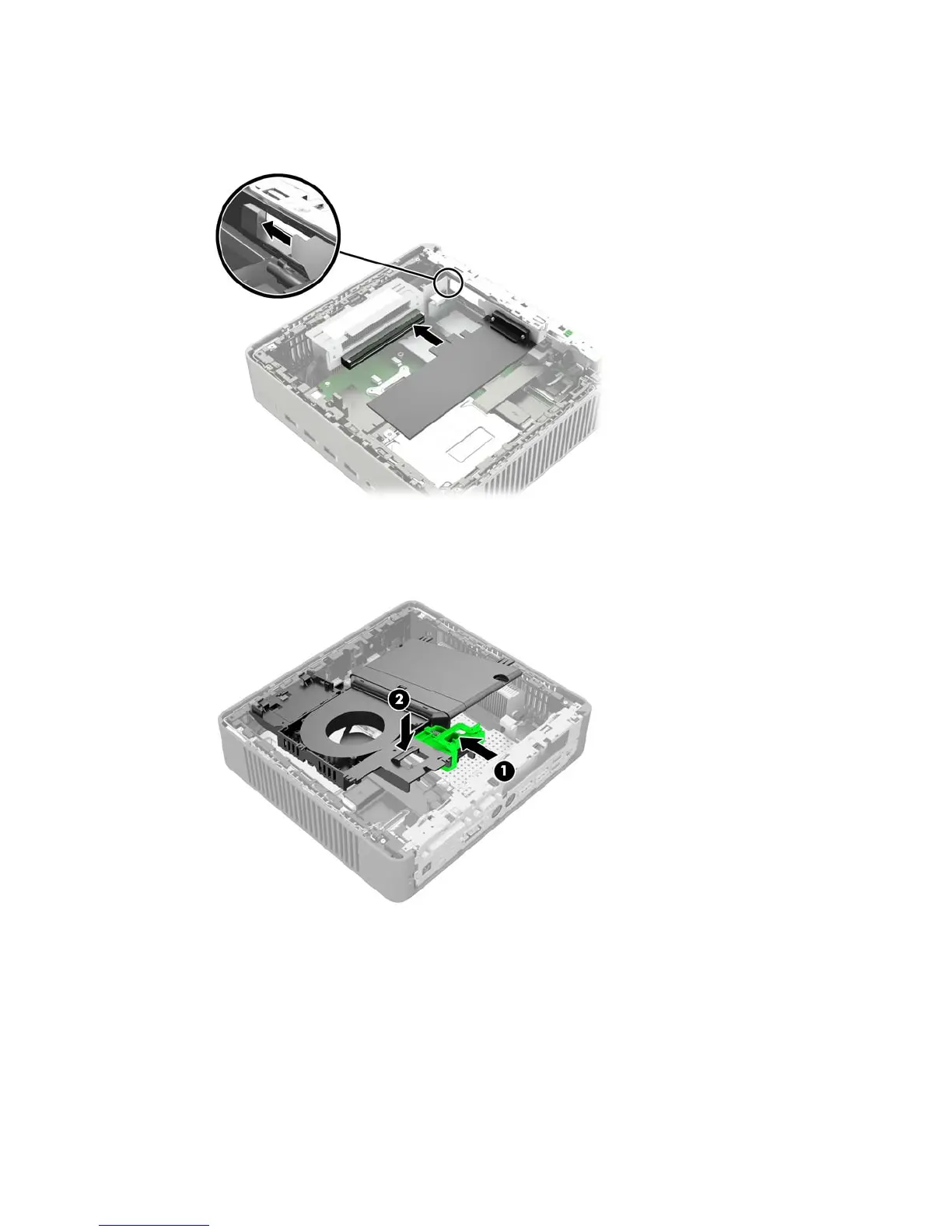

10. Align the PCIe card connectors with the slot in the riser card and the metal tab at the end of the
card with the slot in the chassis. Press the PCIe card firmly into the slot in the riser card until it is
securely seated and the tab is in the slot.
11. Rotate the fan assembly down, push the fan assembly latch (1) toward the front of the computer,
lower the assembly (2) until it stops, and then release the latch.
12. Replace and latch the access panel, and then reinstall the I/O panel.
13. Replace the computer stand.
14. Reconnect the power cord and turn on the computer.
15. Lock any security devices that were disengaged when the computer cover or access panel was
removed.
Installing a half-height PCI-Express 2.0 card 25

HP t620 PLUS Specifications

General

L2 cache	2 MB
Processor cores	4
Processor model	GX-420CA
Processor family	AMD G
Motherboard chipset	-
Processor frequency	2 GHz
Storage media	SSD
Card reader integrated	No
Total storage capacity	16 GB
Storage drive interface	mSATA
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3L-SDRAM
Discrete graphics card model	AMD FirePro 2270
On-board graphics card model	AMD Radeon HD 8400E
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Operating system installed	ThinPro
Operating system architecture	32-bit
Product color	Black
Power supply	85 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Country of origin	China

Weight and Dimensions

Depth	65 mm
Width	220 mm
Height	240 mm
Weight	2040 g
