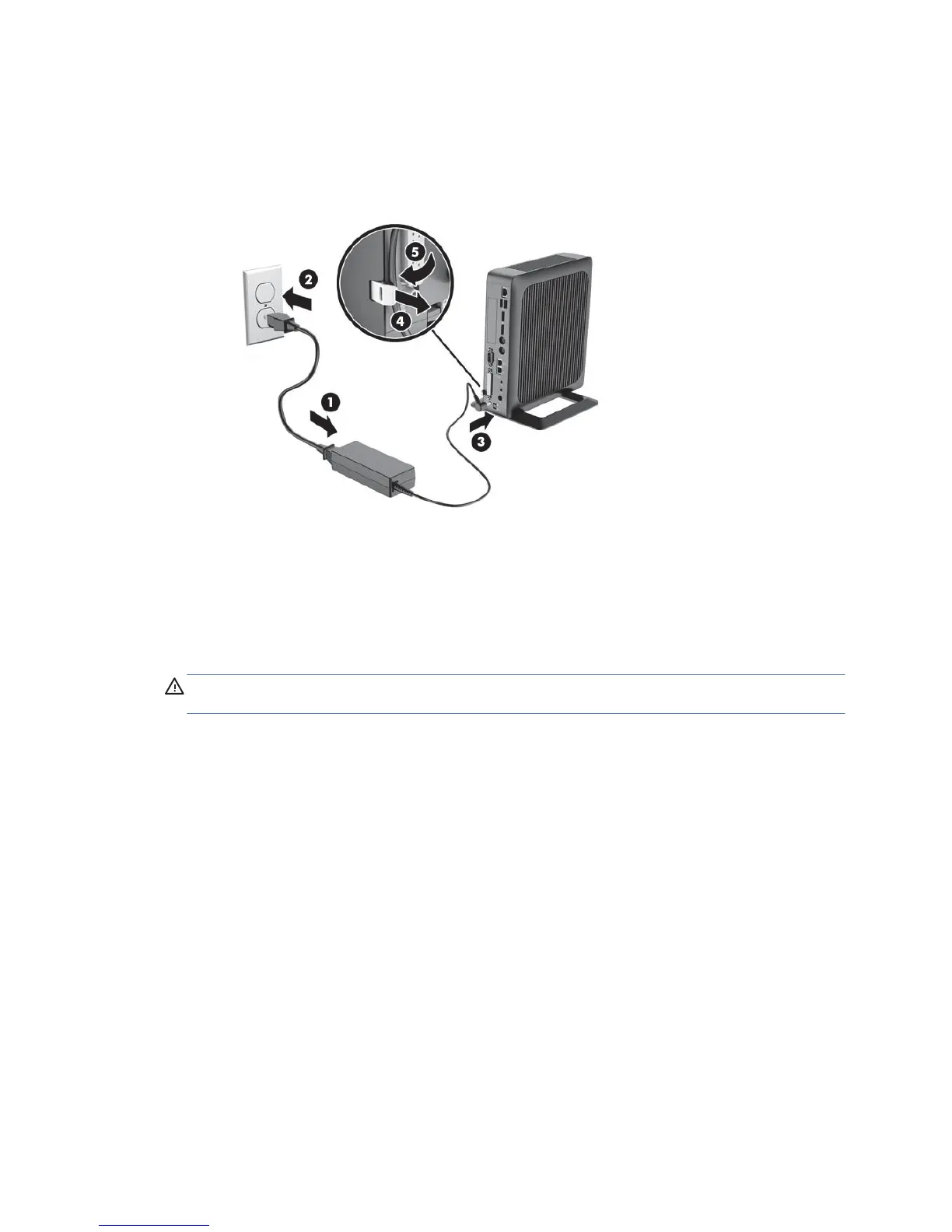

Connecting the power cord
1. Plug the female end of the power cord into the power supply brick (1).
2. Connect the other end of the power cord to an electrical outlet (2).
3. Connect the round end of the power supply cord to the power supply connector on the rear of the
computer (3).
4. Use the slot (4) on the side of the retractable power cord retention hook to pull the hook out.
5. Press the power cord into the retention hook (5) and bundle any excess power cord.
CAUTION: Failure to secure the power cable with the retention hook may result in the power cord
becoming disconnected, causing loss of data.
Connecting the power cord
5
