HP t620 User Manual

Attaching the stand
CAUTION: The computer must be operated with the stand attached to ensure proper airflow around
the computer.
The computer can be used in either a tower or horizontal orientation with the stand included with the
computer.
1. Remove/disengage any security devices that prohibit opening the computer.
2. Remove all removable media, such as USB flash drives, from the computer.
3. Turn off the computer properly through the operating system, and then turn off any external
devices.
4. Disconnect the power cord from the power outlet and disconnect any external devices.

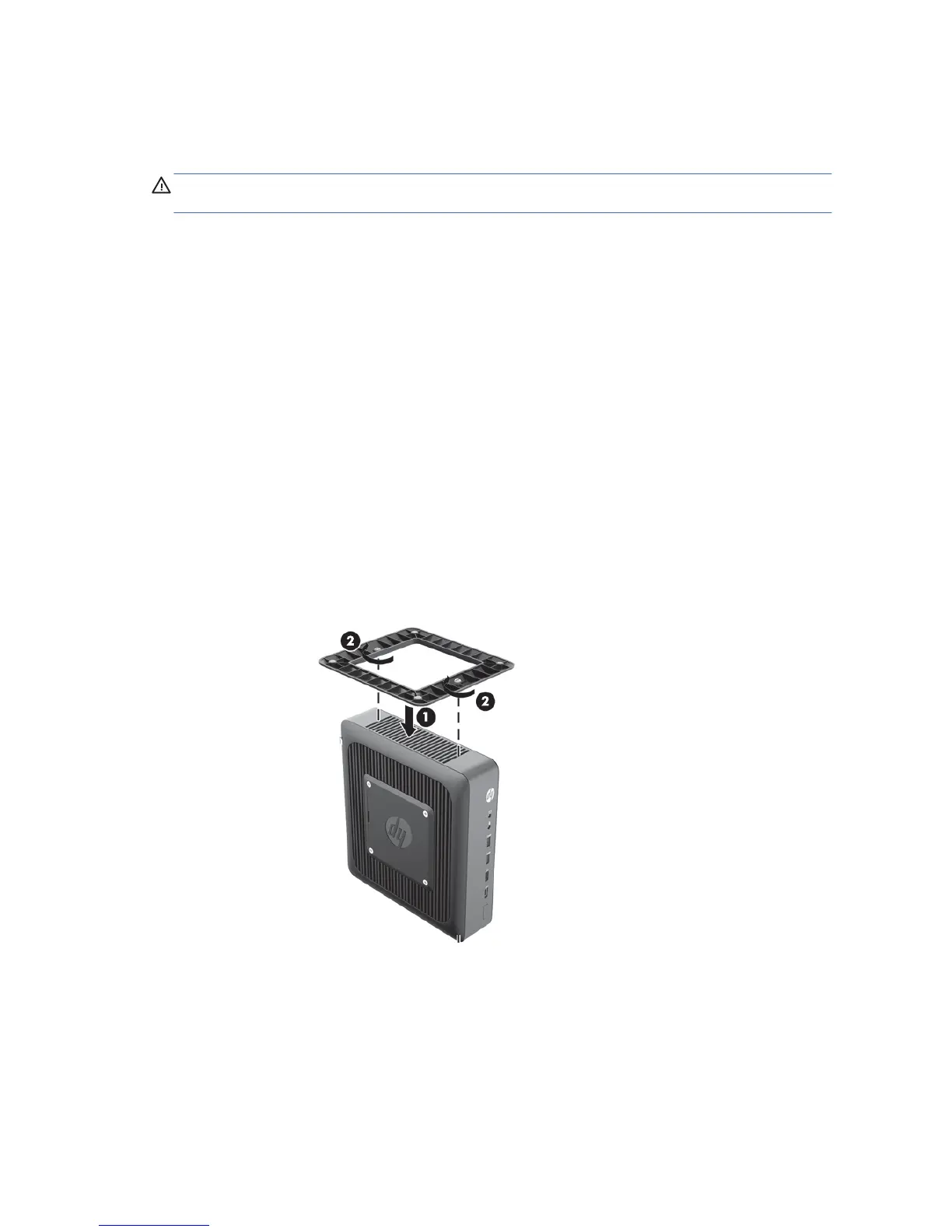

5. Attach the stand to the computer.
ł
Attach the stand to the bottom of the computer to use the computer in the tower orientation.
a. Turn the computer upside down and locate the two screw holes in the grid on the bottom
of the computer.
b. Position the stand (1) over the bottom of the computer and line up the captive
thumbscrews in the stand with the screw holes in the computer.
c. Tighten the captive thumbscrews (2) securely.
6 Chapter 2 Hardware changes

HP t620 Specifications

General

L2 cache	1 MB
Processor cores	2
Processor model	GX-217GA
Processor family	AMD G
Motherboard chipset	-
Processor frequency	1.65 GHz
Storage media	SSD
Card reader integrated	No
Total storage capacity	32 GB
Internal memory	4 GB
Memory clock speed	1600 MHz
Internal memory type	DDR3L-SDRAM
On-board graphics card model	AMD Radeon HD 8280E
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
Operating system installed	Windows Embedded 8 Standard
Operating system architecture	64-bit
Product color	Black
Power supply	65 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Country of origin	China

Weight and Dimensions

Depth	40 mm
Width	220 mm
Height	240 mm
Weight	1360 g
