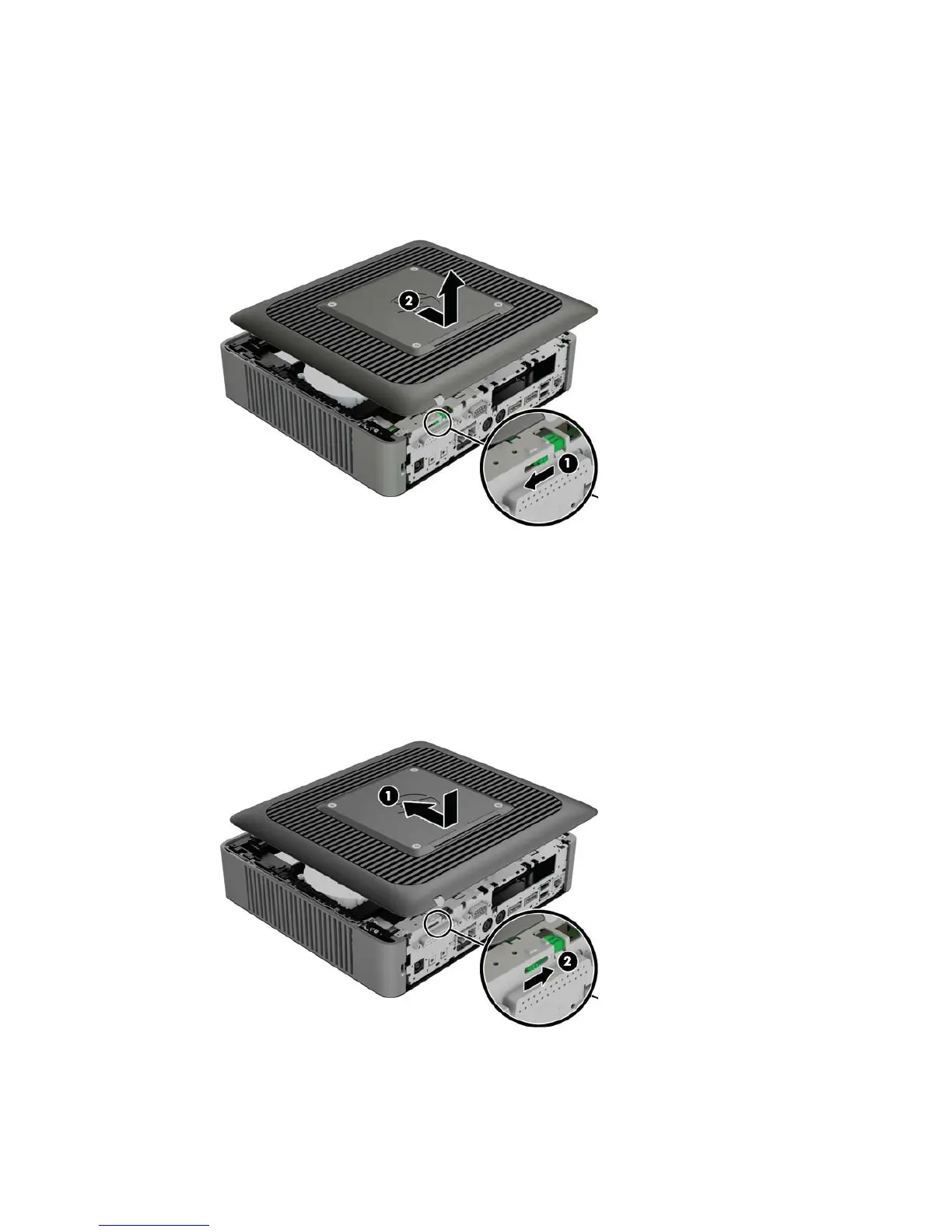

8. Move the access panel latch (1) to the left to release the access panel.
9. Slide the access panel (2) approximately 6 cm (.24 in) toward the back of the chassis, and then
lift the panel off of the computer.
Replacing the access panel
To replace the access panel:
1. Set the access panel (1) onto the chassis approximately 6 cm (.24 in) inside the edge of the
chassis, and then slide the panel toward the front of the chassis until it locks in place.
2. Move the access panel latch (2) to the right to secure the access panel.
Removing and replacing the access panel
9
