Populating SODIMM sockets

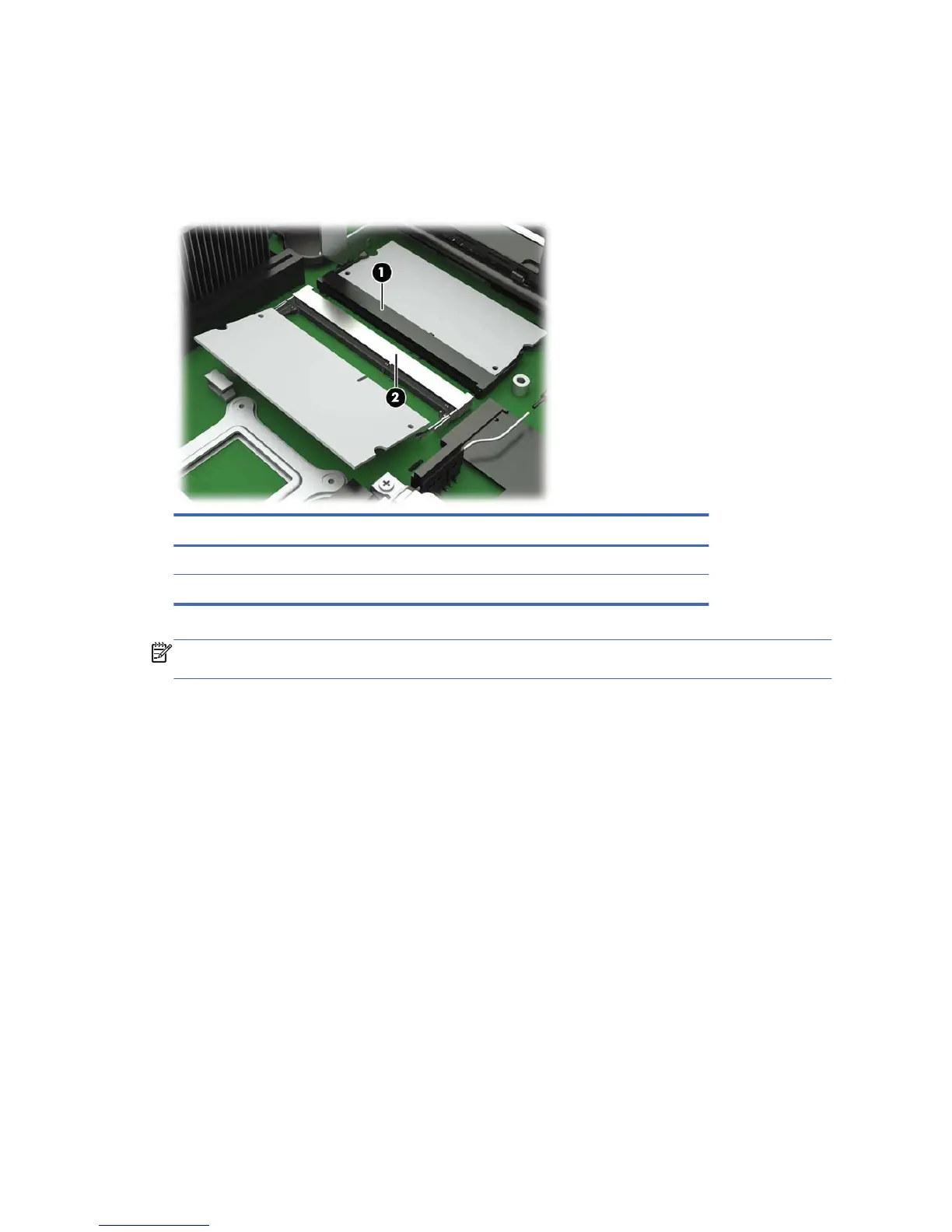

There are two SODIMM sockets on the system board with one total channel. The sockets are labeled
DIMM1 and DIMM2. The system operates in single-channel mode at 1600 MHz.
Item Description System Board Label Socket Color
1 SODIMM1 socket, Channel A DIMM1 Black
2 SODIMM2 socket, Channel A DIMM2 White
NOTE: If both SODIMM sockets are populated with dual-sided SODIMMs, the system memory speed
is reduced to 1333 MHz.
14 Chapter 2 Hardware changes
