HP TFT7600 User Manual

Maintenance 21
Shipping instructions
Keep the original packing box in a storage area in case you must move or ship your HP TFT7600 KVM
Console.
Moving a rack with the HP TFT7600 KVM Console
installed
When moving the HP TFT7600 KVM Console installed in a rack, HP recommends that you install the lock
plates, included in your kit, on each side of the unit and rack.

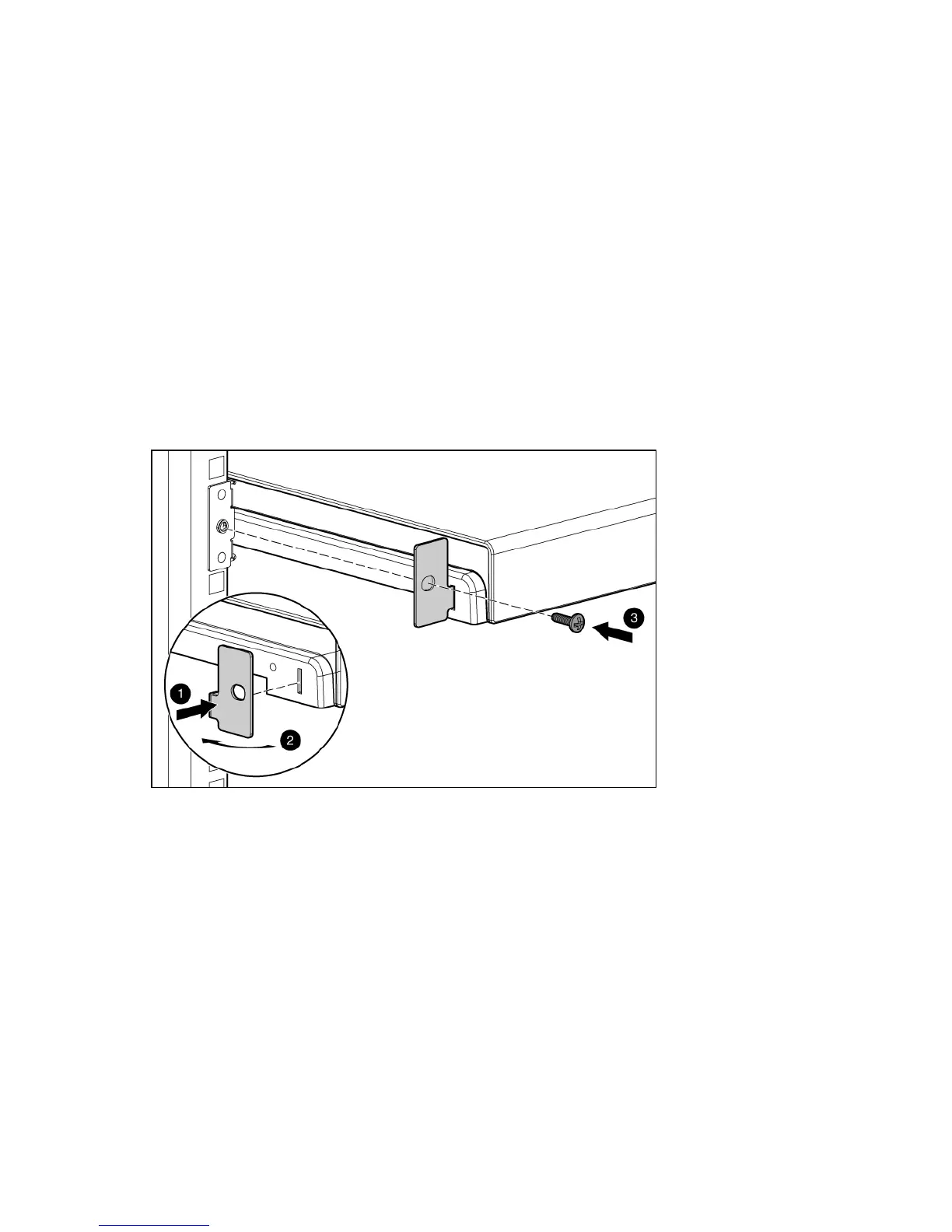

To install lock plates:
1. Place the lock plate into the slot and rotate it back.
2. Insert one M6 screw into the hole on the lock plate, securing the unit to the rack.
3. Repeat steps 1 and 2 to install the other lock plate.

HP TFT7600 Specifications

General

Display Size	17 inches
Native Resolution	1280 x 1024
Brightness	250 cd/m²
Video Input	VGA
Aspect Ratio	5:4
Panel Type	TFT LCD
Viewing Angle	160° horizontal, 160° vertical
Weight	11.3 kg
