HP U27 User Manual

7

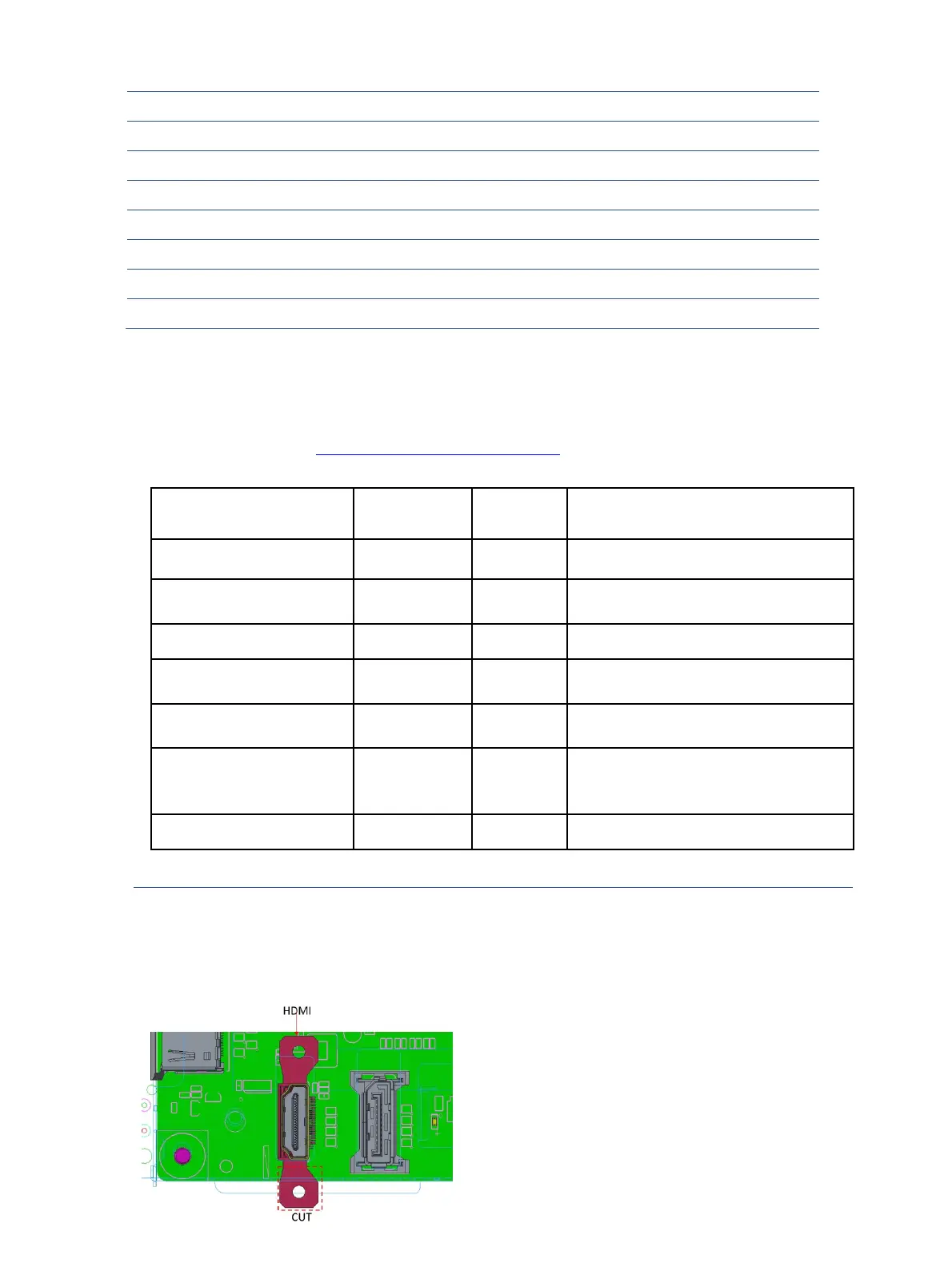

How to order parts
Connectors by manufacturer
• Digi-Key Component: Digi-Key Component United Kingdom
Component description
Location
identifier
Component
distributor
Distributer part number
HDMI
P200
Farnell
47659-1100
DisplayPort
P300
DigiKey
2041441-1
DC Power
P1
DigiKey
732-5935-ND
Audio in
AP1
DigiKey
STX-3680-5NB
Audio out
AP2
DigiKey
STX-3680-5NB
USB- B type
UP1
DigiKey
USB3 B-TOP
or
KUSBVX-BS1N9-BL30
USB- A type
UP2/UP3/UP4
Farnell
USB1086-GF-B
NOTE: The connector may need to be modified to meet functionality, regulatory and safety requirements if
it is not an exact match.
HDMI: If use the HDMI connector of Farnell 47659-1100, the RC (rear cover) need to be modified to meet
functionality, regulatory and safety requirements because it is not an exact match.
14
DISPLAY BD ASS'Y HP Beacon
1
15
NECK(AL/Silver(SP-1430))(HP U27 4k WIRELESS)FULFIL
1
16
BASE(ABS 94-HB/Silver(SP-1430))(HP U27 4k
WIRELESS)FULFIL
1
17
HDMI(2.0) CABLE 150mm
(1P*#30+EAHM)*5+4C*#30+AEB AL 85%
1
18
WH FFC 6P(0.5mm) 110mm(3FOLD+PRO)60V G/F
(A8+A8) HF
1
19
WH FFC 30P(0.5mm) 200mm(3FOLD+PRO+3M)60V G/F
W/CONN*2+AL(AA) HF
1
20
WH FFC 8P(0.5mm) 530mm(4FOLD+PRO)60V G/F
(A8+A12/V-CUT) HF
1
21
WH FFC 20P(0.5mm) 380mm(3FOLD+PRO)60V G/F
(A5+A10) HF
1

HP U27 Specifications

General

Pixel pitch	0.155 x 0.155 mm
Screen shape	Flat
Pixel density	163 ppi
Display diagonal	27 \
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	40 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	31 - 135 kHz
Contrast ratio (typical)	1000:1
Display number of colors	-
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
Headphone out	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
USB Type-A downstream ports quantity	3
Certification	BSMI; CB; CCC; CE; CSA; CSA-NRTL; EAC; EUP Lot-6; FCC; GEMS; HRN N N0.201; ICES; IS 1121; KC/KCC; PSB; RCM; SABS IEC 60950-1; SASO; TUV Bauart; VCCI; ISC; EUP Lot-26; IEC 60950:1999; eStandby; MEPS (HP) UKRAINIA; ISO 9241; China CEL
Market positioning	Home
Tilt angle range	-5 - 16 °
Panel mounting interface	100 x 100 mm
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package type	Box
Package depth	125 mm
Package width	699 mm
Package height	462 mm
Package weight	7450 g
AC input voltage	100 - 240 V
Power consumption (standby)	0.3 W
Power consumption (typical)	46.2 W
Cables included	AC, HDMI

Weight and Dimensions

Depth (with stand)	193.5 mm
Height (with stand)	501.3 mm
Weight (with stand)	5000 g
Depth (without stand)	53.2 mm
Width (without stand)	613.5 mm
Height (without stand)	366.5 mm
