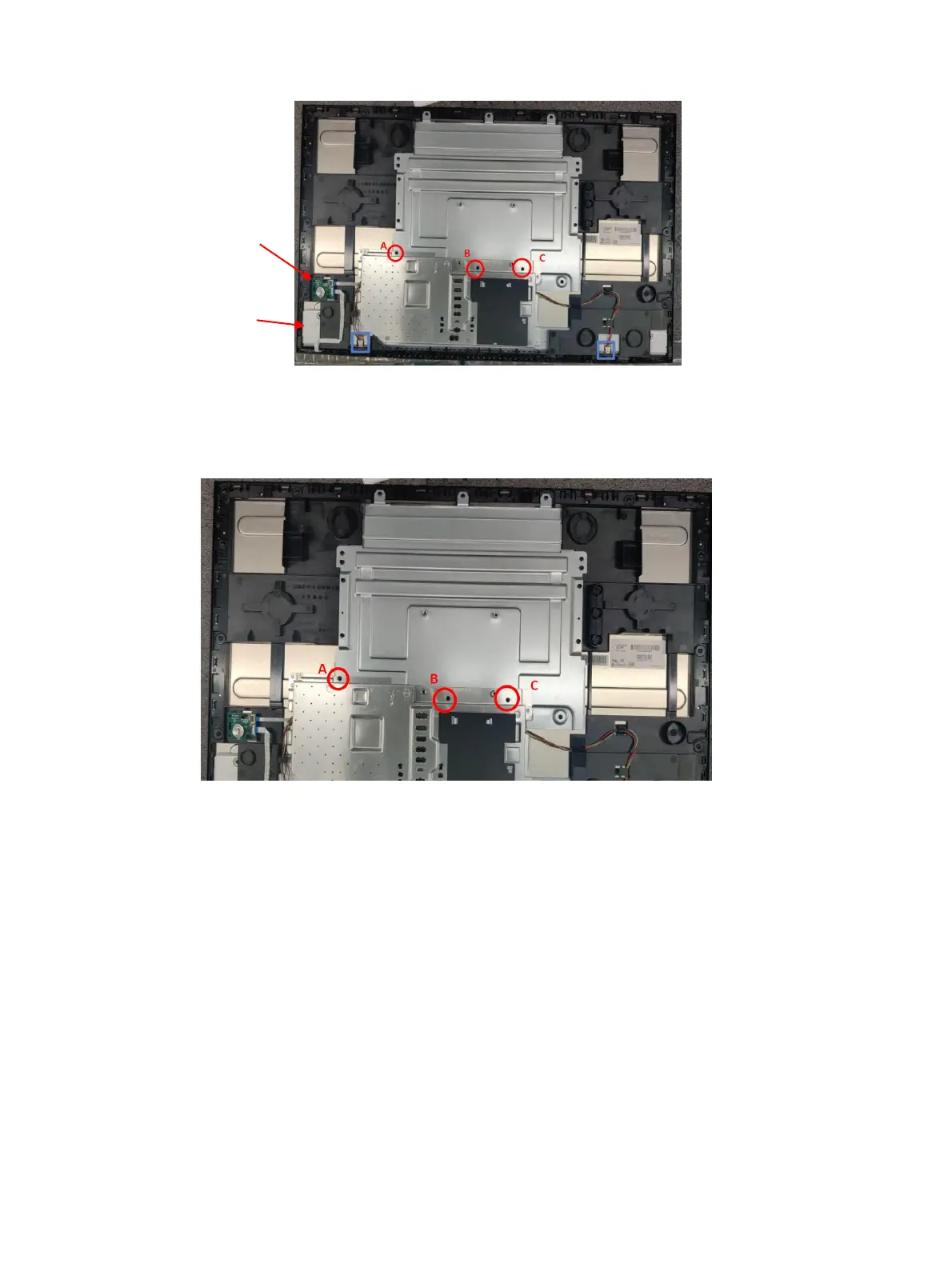

4) Remove the screws of the shielding cover. Take the electric screwdriver and remove the three screws (from A->B->C), at

the red circle .

5) Remove EDP cable. Lift the shielding cover and pull out the EDP cable as shown in blue square and place the shielding

cover aside.

OSD board

Power board
