HP V272 - Separate Mainframe and Panel; Remove Main Board and Power Board

HP V272
5 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
2

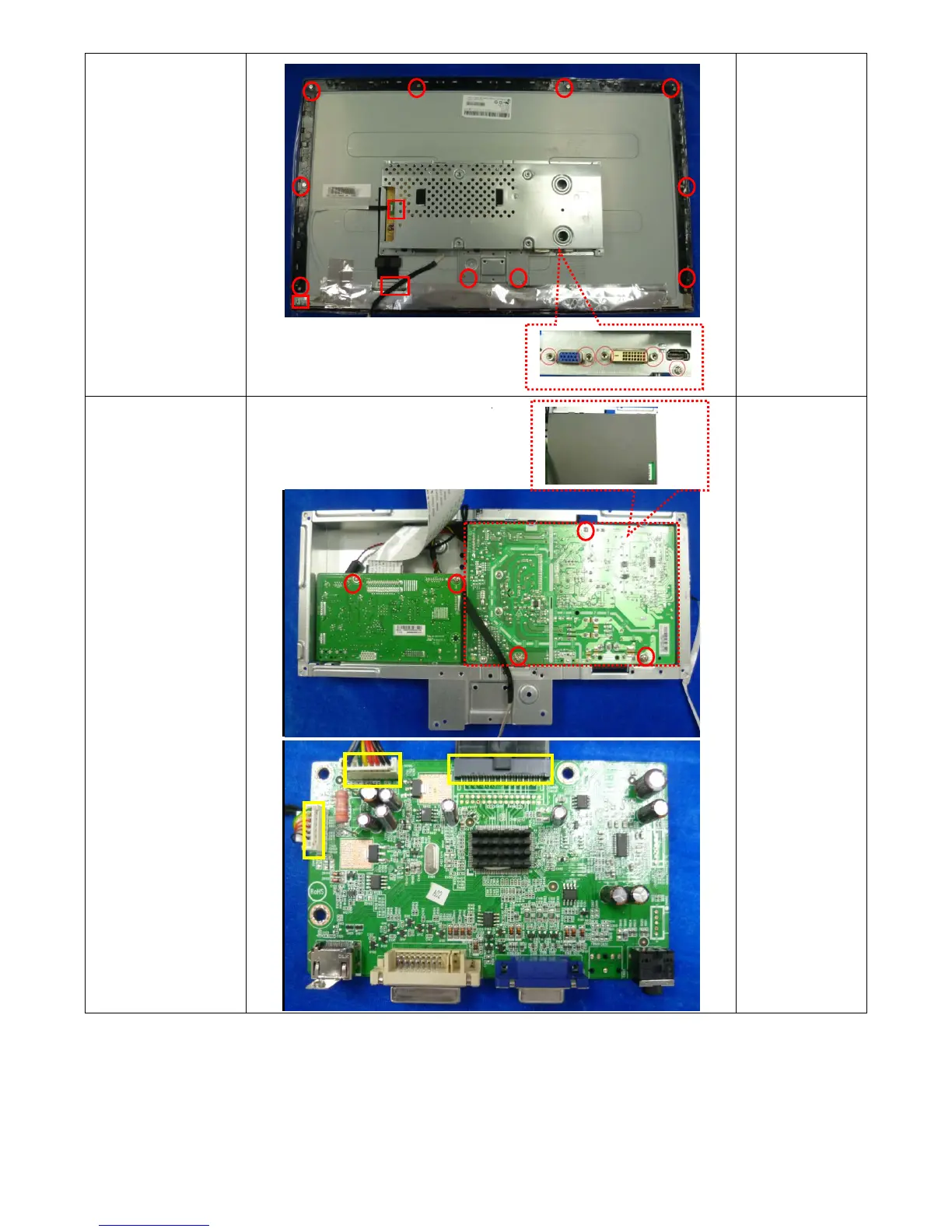

Separate the
MAINFRAME
and PANEL
Tear out all
tapes.
Remove the
screws and
disconnect the
connectors
to separate the
MAINFRAME
and PANEL.
Remove the
MAIN BOARD
and POWER
BOARD

Remove the
screws and
disconnect the
connectors to
remove the
MAIN BOARD
and power board.
