HP VS15 Series

HP VS15 Service Manual
10

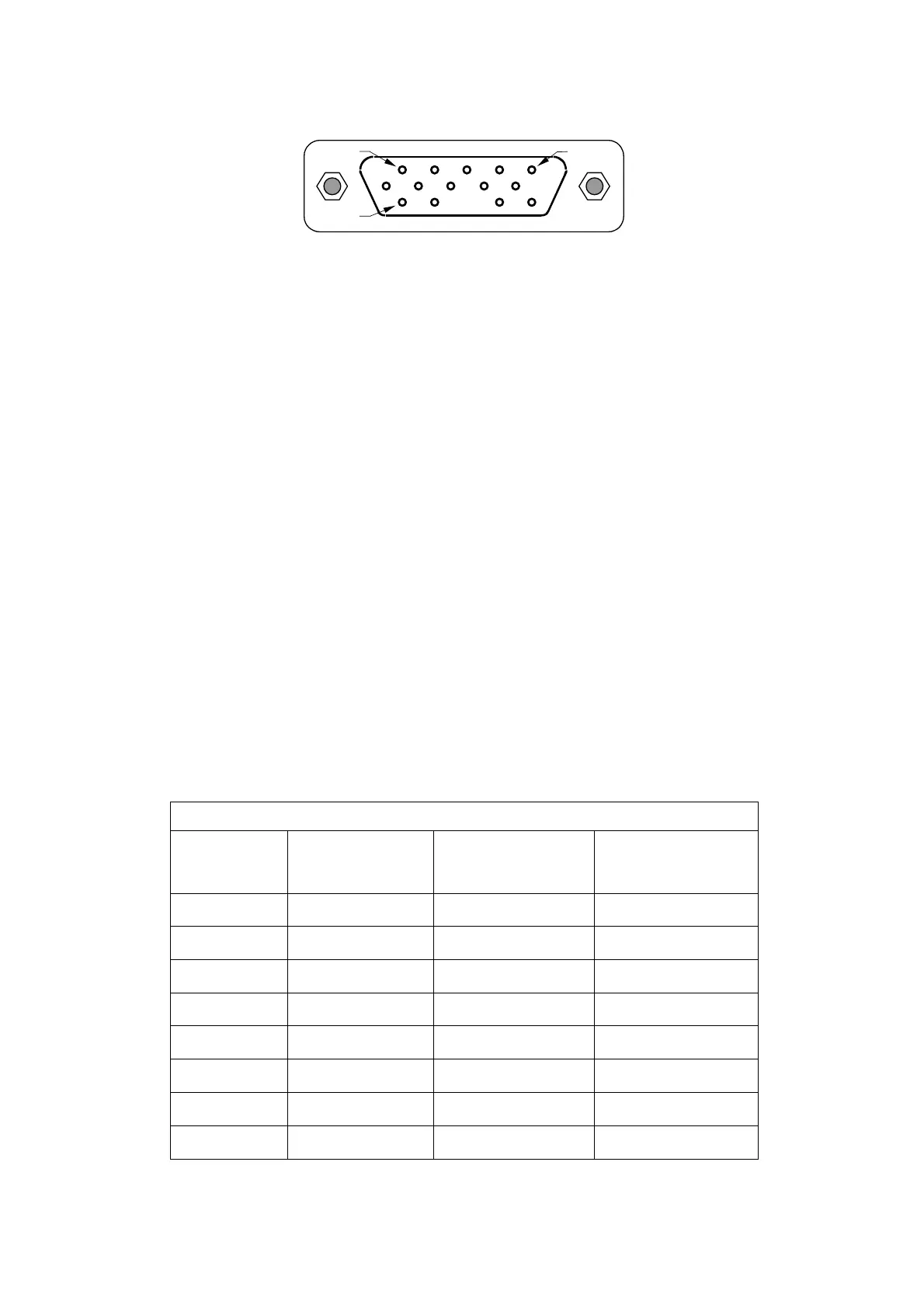

VGA connector layout
PIN 1
PIN 5
PIN 11
4.2 Factory Preset Display Modes
Factory Pre-set Video Input Modes
Pre-set Pixel Format
Horizontal
Frequency (kHz)
Vertical Frequency
(Hz)
1 640 x 480 31.5 60.0
2 640 x 480 37.9 72.0
3 640 x 480 37.5 75.0
4 720 x 400 31.5 70.0
5 800 x 600 37.9 60.0
6 800 x 600 48.1 72.0
7 800 x 600 46.9 75.0
8 832 x 624 49.7 75.0
