HP VS15 Service Manual
47

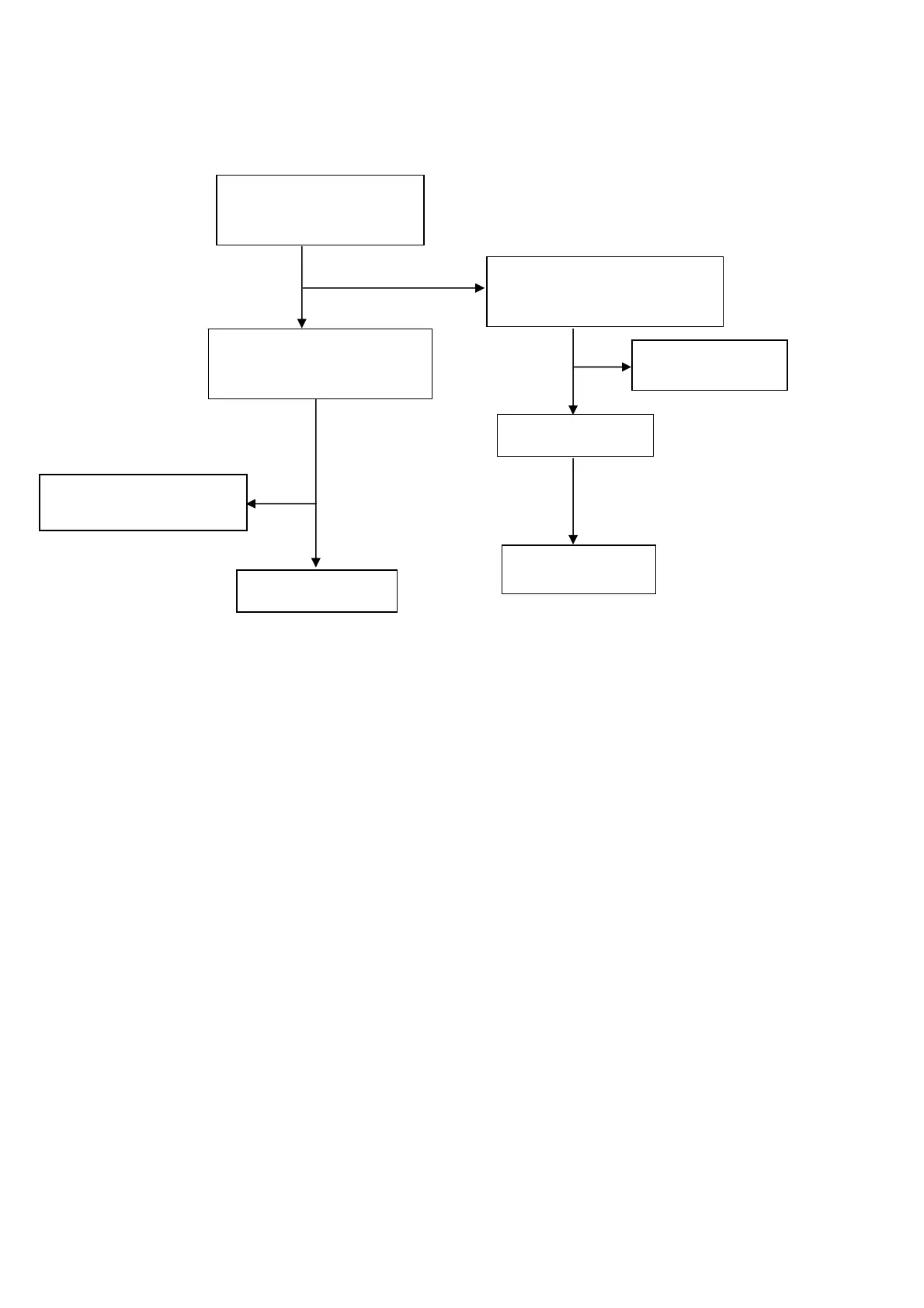

Panel Power Circuit
Replace PANEL
Measure Q204 base
is high level?
Check Q204 and Q203
are broken or CN503
Check Correspondent
component.
OK
OK
NG
NG
Y601 oscillate waveforms
are normal
Replace U601
Replace Y601
OK
Replace U401
NG
NG
