HP VS17E
8
4. Input/Output Specification

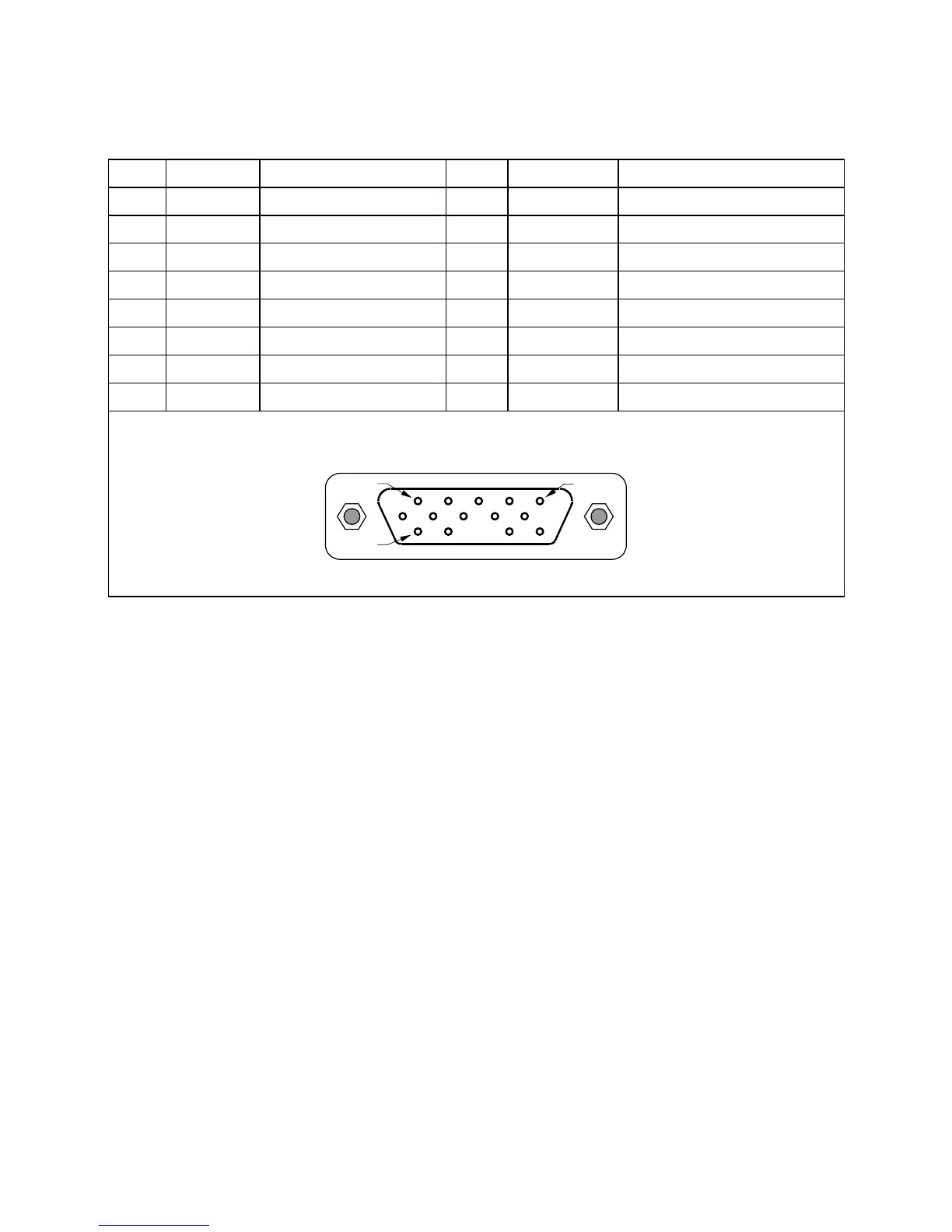

4.1 Input Signal Connector
Pin Mnemonic Signal Pin Mnemonic Signal
1 RV Red Video 9 +5 V +5 V (from PC)
2 GV Green Video 10 SG Sync Ground
3 BV Blue Video 11 NC None
4 NC PC Connect detection 12 SDA DDC Data
5 GND Ground (DDC Return) 13 HS Horizontal Sync
6 RG Red GND 14 VS Vertical Sync
7 GG Green GND 15 SCL DDC Clock
8 BG Blue GND
VGA connector layout
PIN 1
PIN 5
PIN 11
