3. Illustrated parts catalog

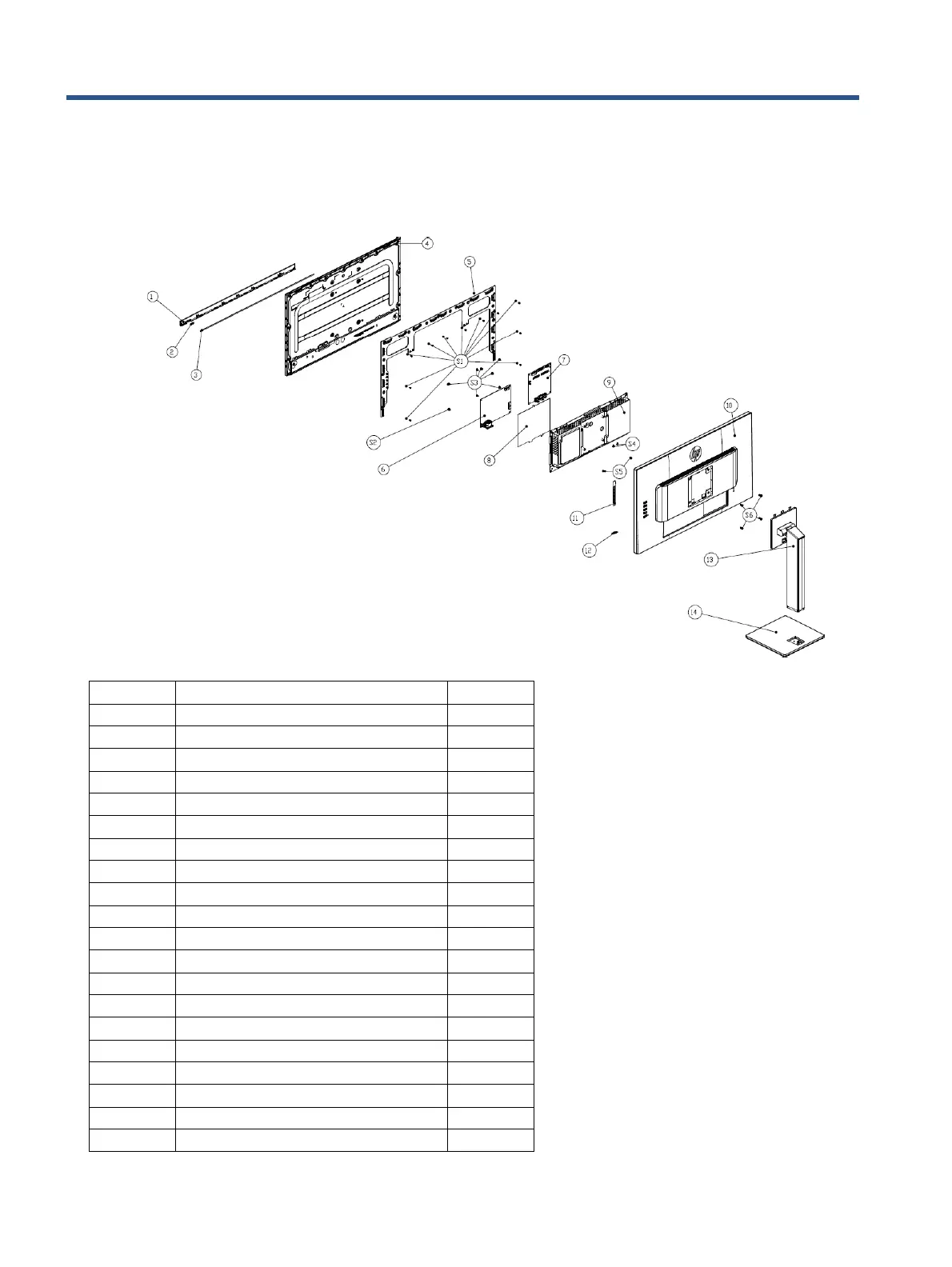

To identify the monitor major components, use this illustration and table.
item
part name
q'ty
1
DECO
1
2
LENS
1
3
SPONGE
1
4
X27 PANEL
1
5
MIDFRAME
1
6
POWER BOARD
1
7
SCALAR BOARD
1
8
MYLAR
1
9
MAINFRAME
1
10
REAR COVER
1
11
KEY BOARD
1
12
LED BOARD
1
13
STAND ASSY
2
14
BASE ASSY
1
S1
SCREW M3L5
11
S2
SCREW M4L8
1
S3
SCREW M3L7
7
S4
SCREW M3L7
2
S5
SCREW M3L3
2
S6
SCREW M4L10
4
