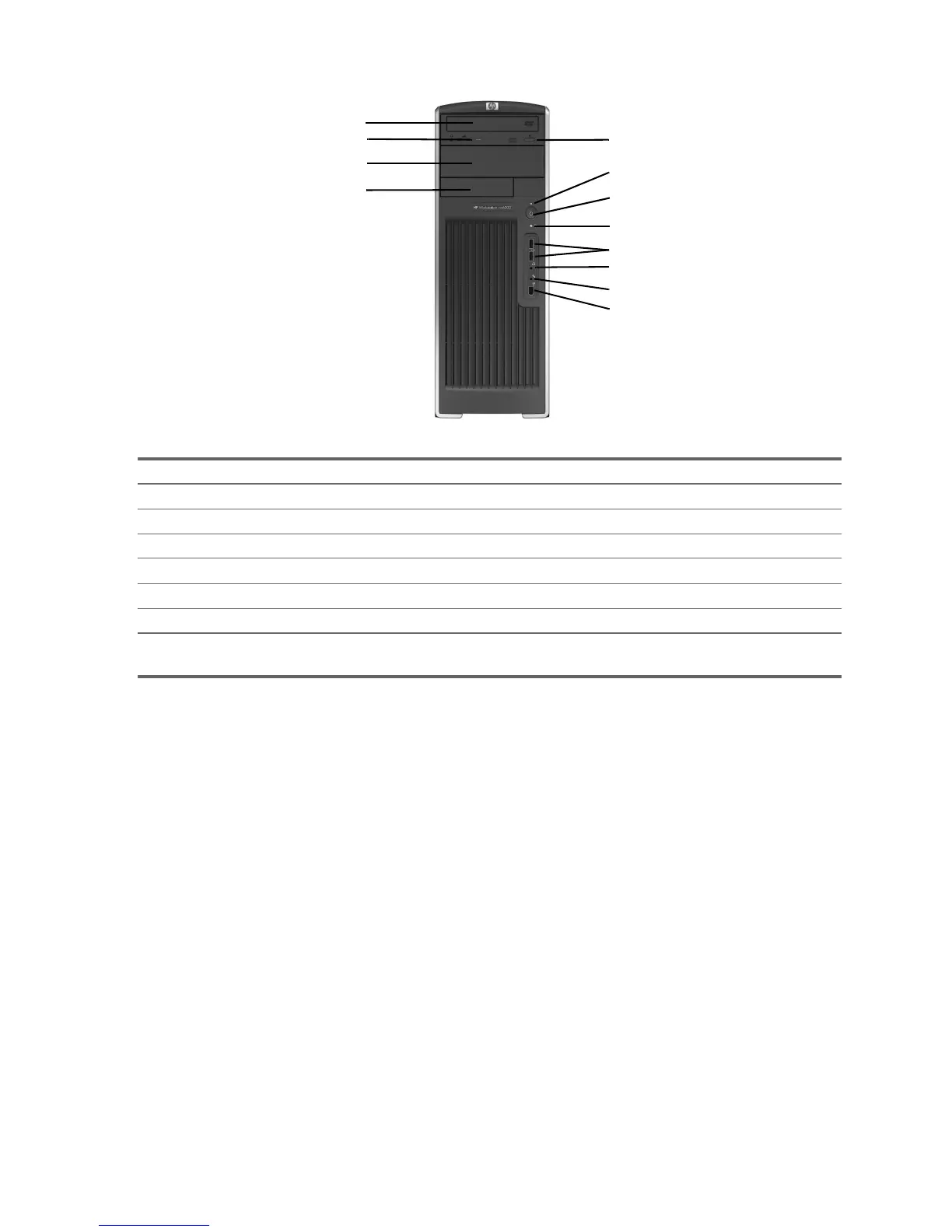

2.2.2 HP xw6200 Workstation Front Panel Components
Table 2-2 HP xw6200 Workstation Front Panel Components
Item Description Item Description
1 Optical Drive* 7 Power Button
2 Optical Drive Activity Lights 8 Hard Drive Activity Light
3 5.25-Inch Drive Bays 9 USB 2.0 Ports (2)
4 Diskette Drive (optional) 10 Headphone Connector
5 Optical Drive Eject Button 11 Microphone Connector
6 Power On Light 12 IEEE-1394a Connector**
NOTE: * An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD±R/RW, or CD-RW/DVD combo drive.
NOTE: ** IEEE-1394a is an optional feature. If the unit was purchased without this option, this connector will be covered.
