HP xw series User Manual

Front Panel Components
Hardware Setup
11

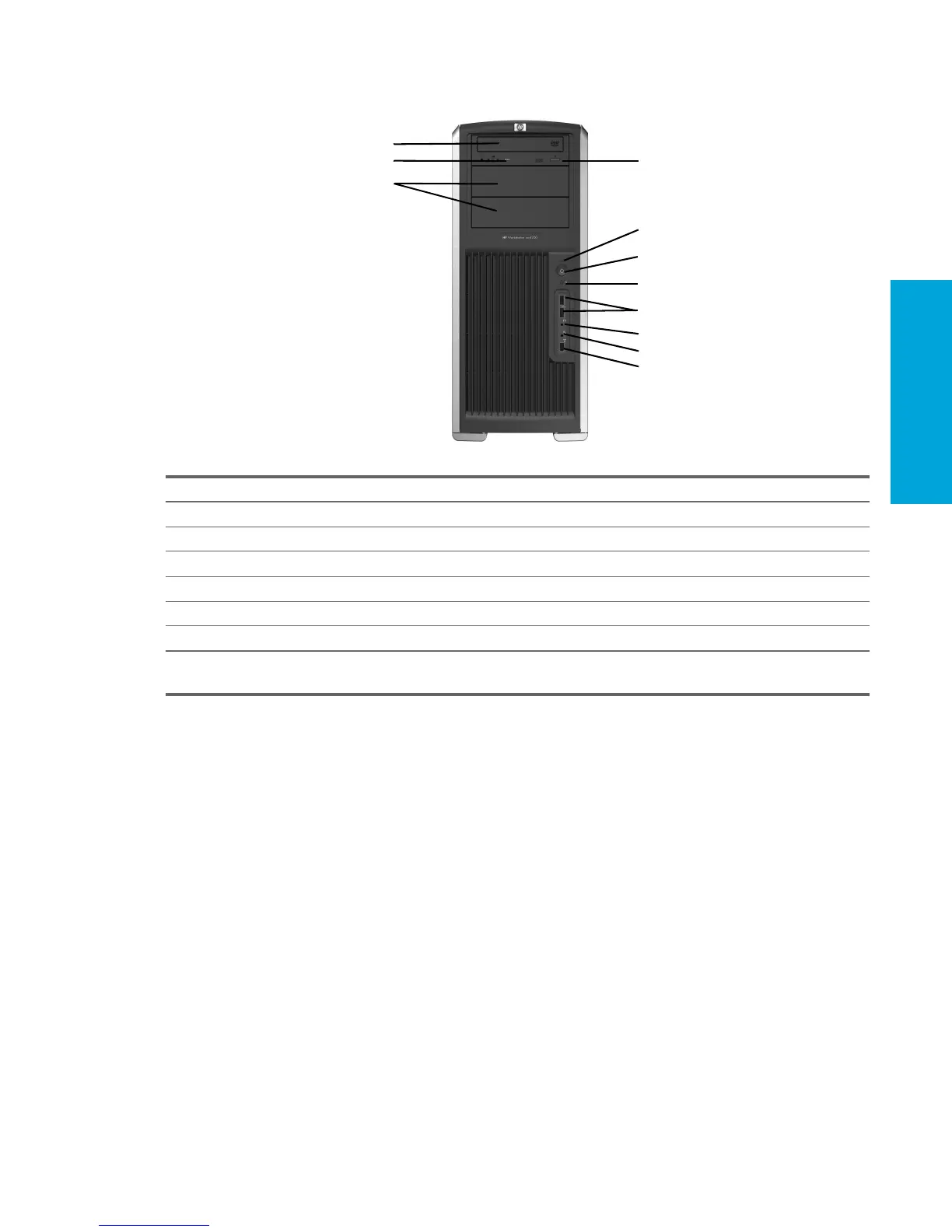

2.2.3 HP xw8200 Workstation and HP xw9300 Workstation Front Panel
Components
Table 2-3 HP xw8200 Workstation and HP xw9300 Workstation Front Panel Components
Item Description Item Description
1 Optical Drive* 7 Hard Drive Activity Light
2 Optical Drive Activity Lights 8 USB 2.0 Ports (2)
3 5.25-Inch Drive Bays** 9 Headphone Connector
4 Optical Drive Eject Button 10 Microphone Connector
5 Power On Light 11 IEEE-1394a Connector
6 Power Button
NOTE: * An optical drive is a CD-ROM, CD-R/RW, DVD-ROM, DVD±R/RW, or CD-RW/DVD combo drive.
NOTE: **The lowest 5.25 inch bay on the xw9300 only supports an optional 3.5 floppy diskette drive or a hard drive.
3
4
5
6
8
10
7
11
1
2
9

HP xw series Specifications

General

Brand	HP
Model	xw series
Category	Desktop
Language	English
