HP xw series User Manual

Hardware Setup12
2.3 Rear Panel Components

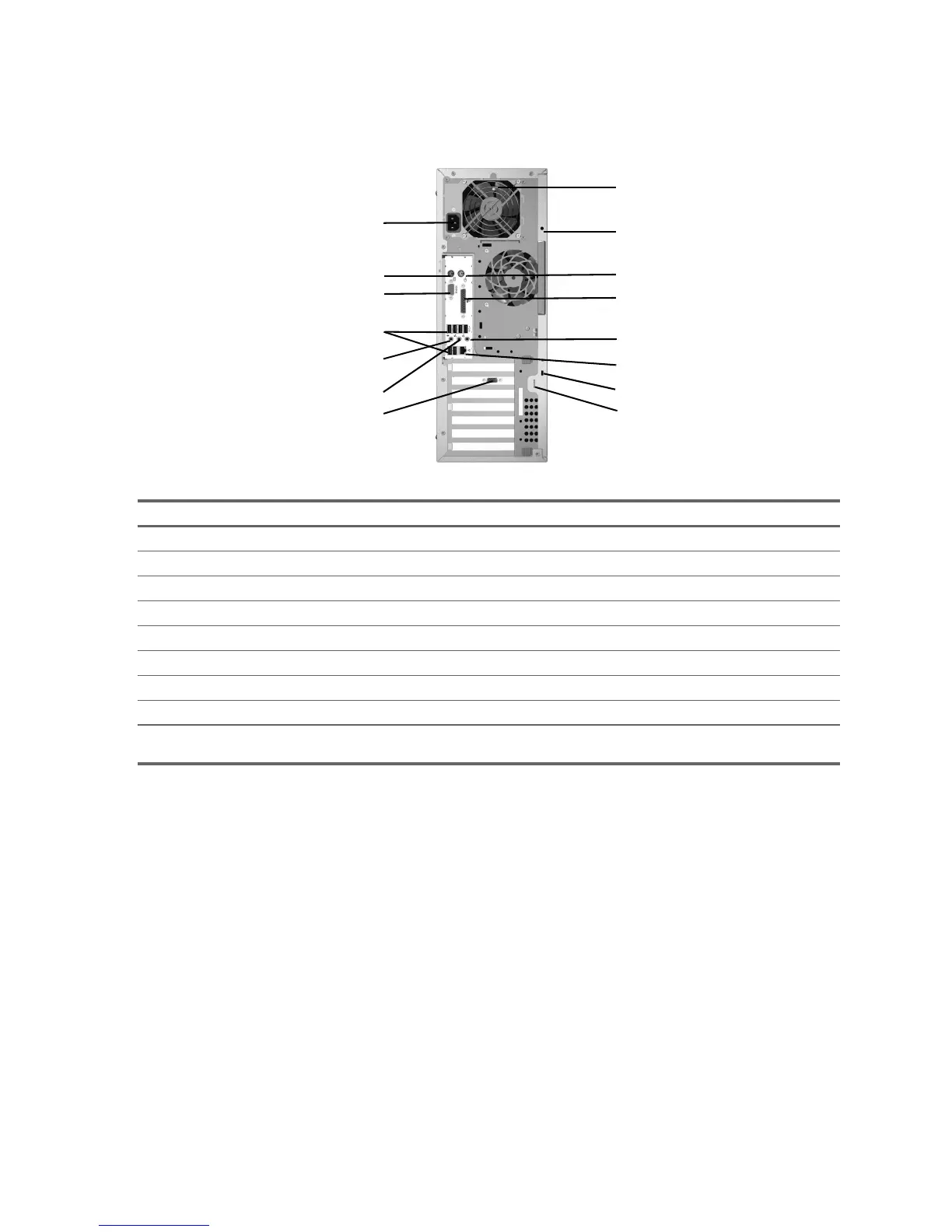

2.3.1 HP xw4200 Workstation and HP xw4300 Workstation Rear Panel
Components
Table 2-4 HP xw4200 Workstation and HP xw4300 Workstation Rear Panel Components
Item Description Item Description
1 Power Cord Connector 9 Universal Chassis Clamp Opening
2 Keyboard Connector (purple) 10 Mouse Connector (green)
3 Serial Connector (teal) 11 Parallel Connector (burgundy)
4 USB 2.0 Ports (6) 12 Audio Line-In Connector (light blue)
5 Microphone Connector (pink) 13 RJ-45 Network Connector
6 Audio Line-Out Connector (lime) 14 Cable Lock Slot
7 Graphics Adapter 15 Padlock Loop
8 Built In Self Test (BIST) (green LED)
NOTE: The rear panel connectors are labeled with industry-standard icons and colors to assist you in connecting your peripheral
devices.
4
5
6
9
7
12
10
3
1
2
11
13
14
15
8
9
