Connecting the power and data cables
1. If installing a SAS hard drive, attach the SAS-to-SATA interconnect cable adapter to the SAS
connector on the hard drive. The cable adapter is provided with the kit and is required only when
installing a SAS hard drive.

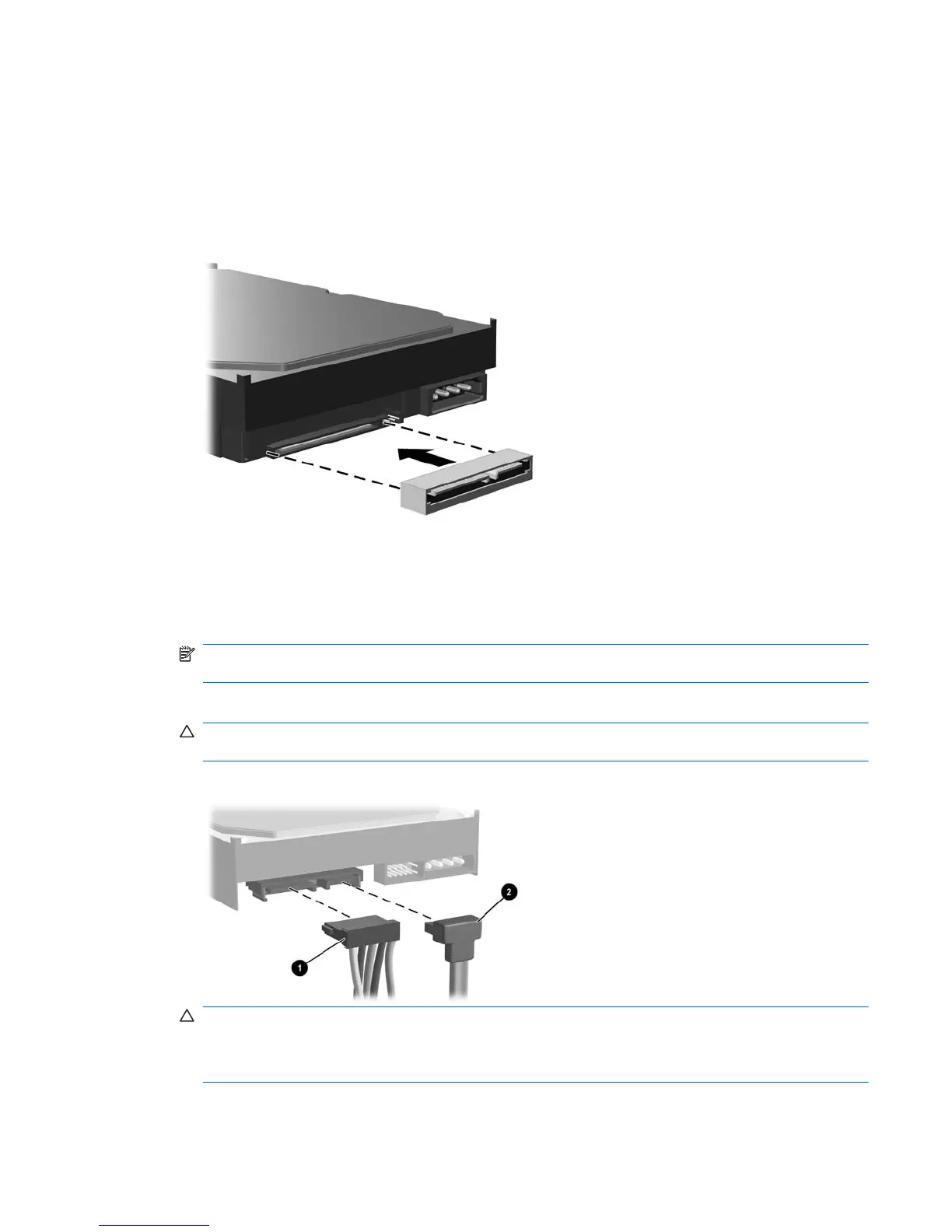

Figure 5 Install the SAS-to-SATA adapter
2. Select the SATA interconnect cable from the kit that best fits the hardware configuration of your
SATA or SAS hard drive. A cable with a right-angle connector can be used to avoid bending or
crushing the cable.
NOTE: Individual SATA ports and connectors on the system board are identified on the service
label, located inside the computer side access panel.
3. Connect the power cable (1) and data cable (2) to the hard drive.
CAUTION: Connect the power cable before connecting the data cable to reduce the risk of
damage to the drive due to Electrostatic Discharge (ESD).
Figure 6 Connecting the power and data cables
CAUTION: Connect the primary hard drive to the connector on the system board labeled
SATA 0 or SAS 0, depending on hard drive type. Connect a second hard drive to the SATA 1 or
SAS 1 connector. Connect a third hard drive to the SATA 2 or SAS 2 connector and a fourth
hard drive to the SATA 3 or SAS 3 connector.
4. Connect the opposite end of the data cable to the system board.
ENWW Step 2—Preparing and installing the hard drive 7
