5. Install one (supplied) M3 x 5mm screw (black) for each DX115 unit for shipping support as
shown. Additional M3 x 5mm screws are located on the chassis front side under the bezel.
CAUTION: Failure to install the shipping screw might result in damage to the removable hard
drive system.

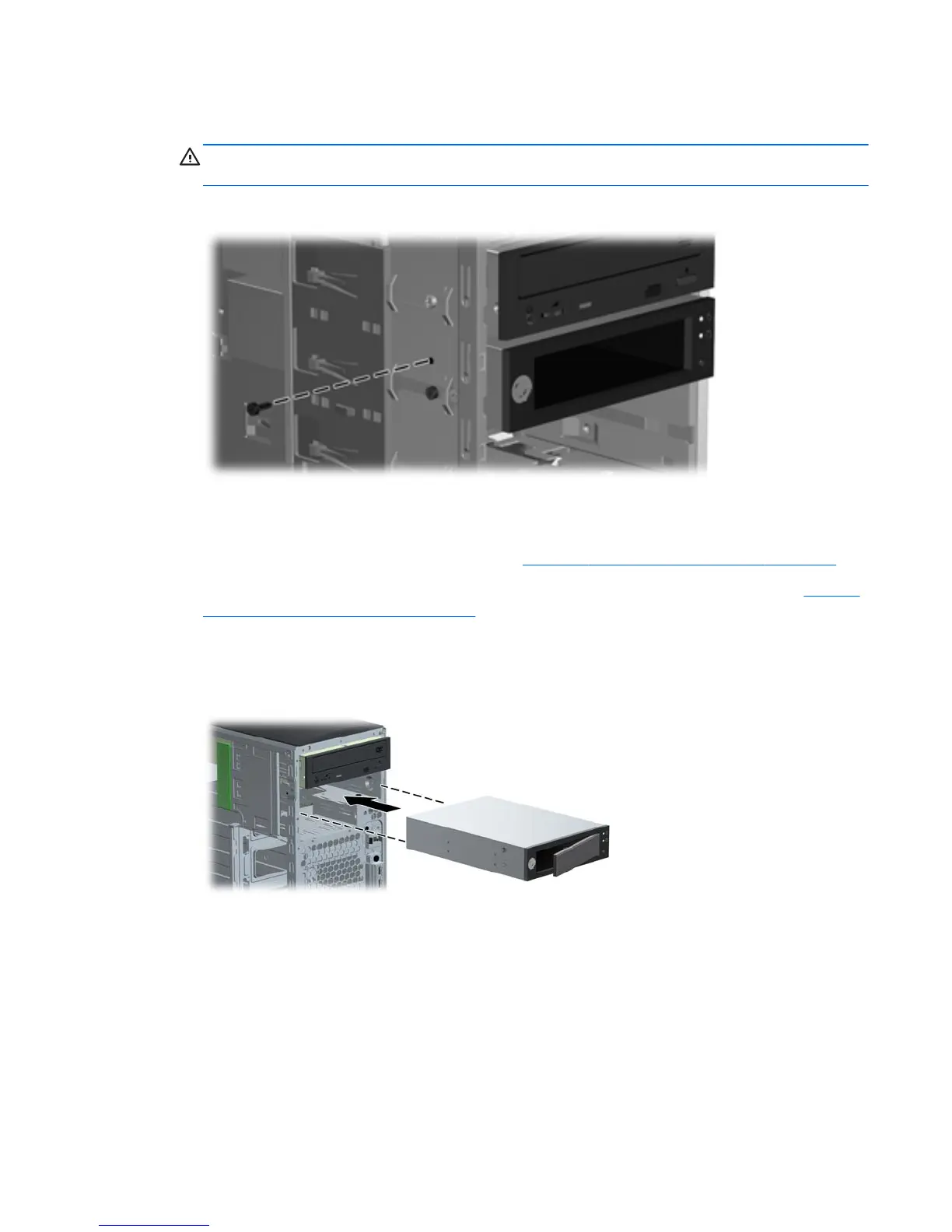

Figure 17 Installing the shipping support screw
HP xw6200, HP xw6400, and HP xw6600 computers
1. Remove the front bezel from the computer. See Figure 14 Removing the front bezel on page 9.
2. Remove and discard the counter-sunk shipping screw at the side of the DX115 case. See
Figure 8
Removing the shipping screw on page 7.
3. Gently slide the DX115 unit into the chassis until it locks into place, as shown in the following
figure.
Figure 18 Installing the DX115 case
ENWW
Step 2—Installing the DX115 case into the optical drive bay
11
