5. Slide the drive all the way to the rear end of the carrier so that the power and data connectors
mate with the carrier adapter.

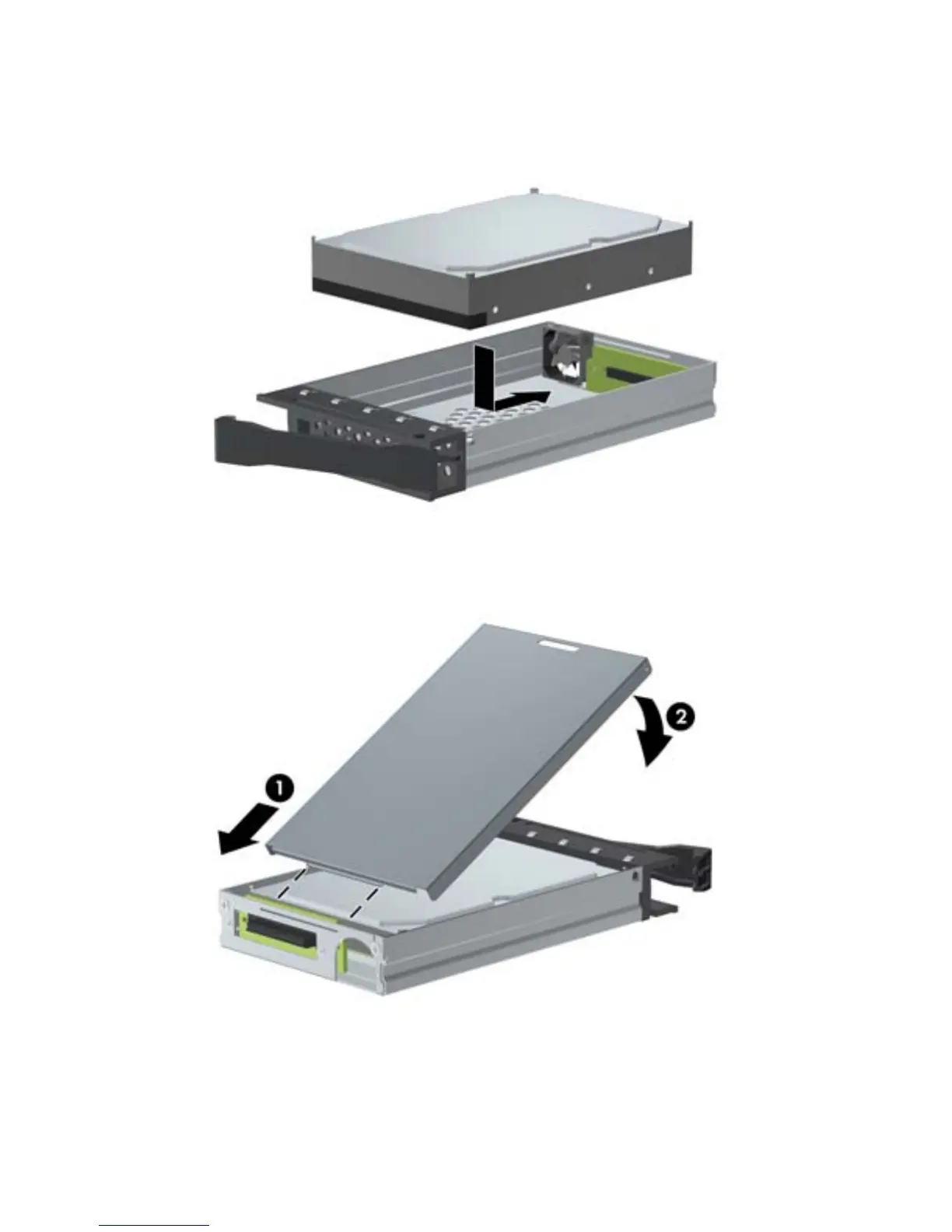

Figure 26 Installing the drive
6. Replace the cover by aligning the tab on the rear of the cover with the slot on the rear of the
carrier (1) and then rotating the front of the cover onto the carrier (2).
Figure 27 Replacing the cover
16 CRU Dataport DX115 kit installation ENWW
