1
10. Mechanical Instructions
Step
Description

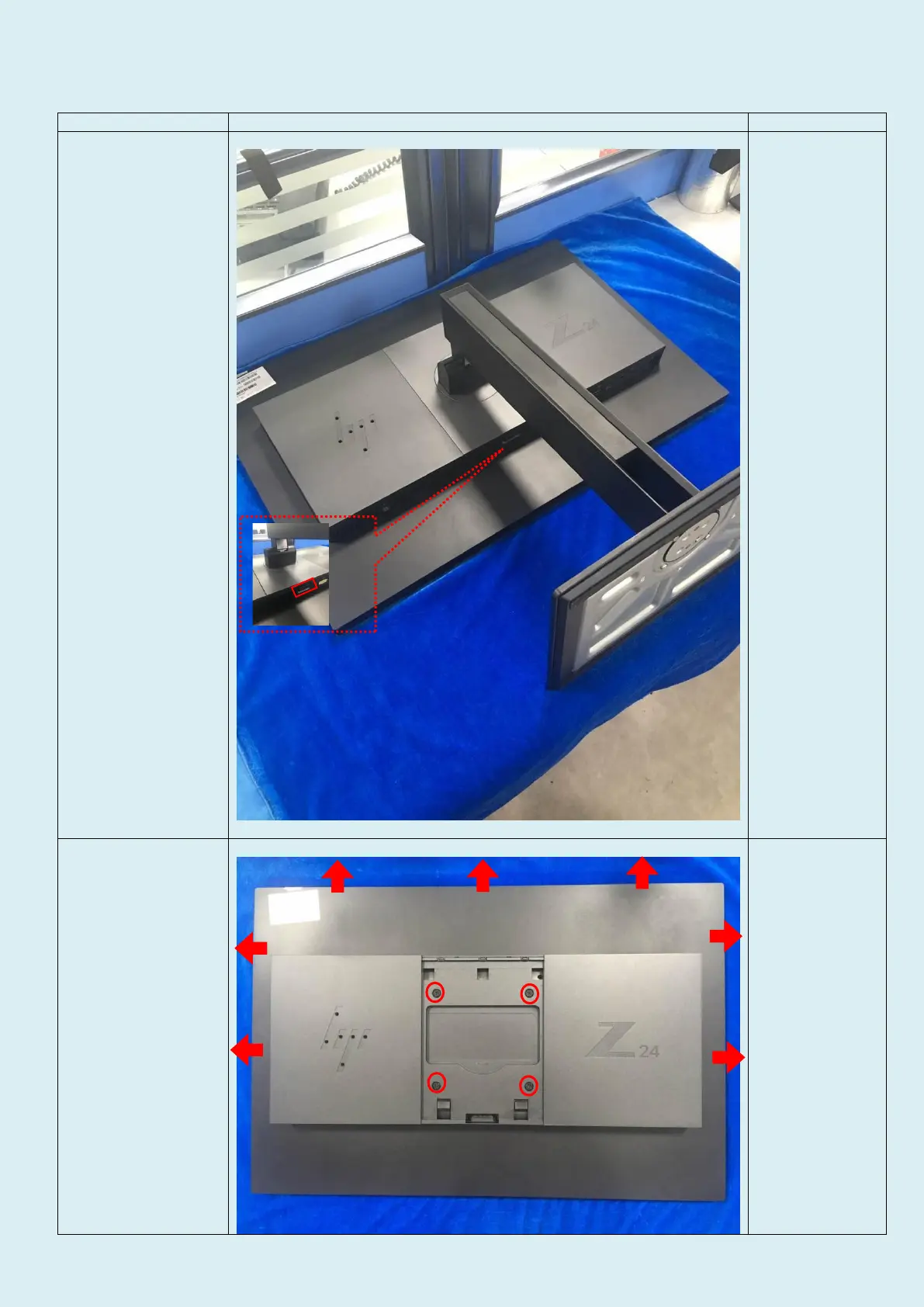

Remove the
HINGE ASS'Y
Press the button
to remove the
hinge assy
Remove the
REAR_COVER
Remove the
screws first,and
remove the rear
cover ,then
remove the key
board from rear
cover
