EL-MF877-00
Template Revision B
Page 3
PSG instructions for this template are available at EL-MF877-01
3.2
Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items
contained in the product that require selective treatment (with descriptions and arrows identifying locations).

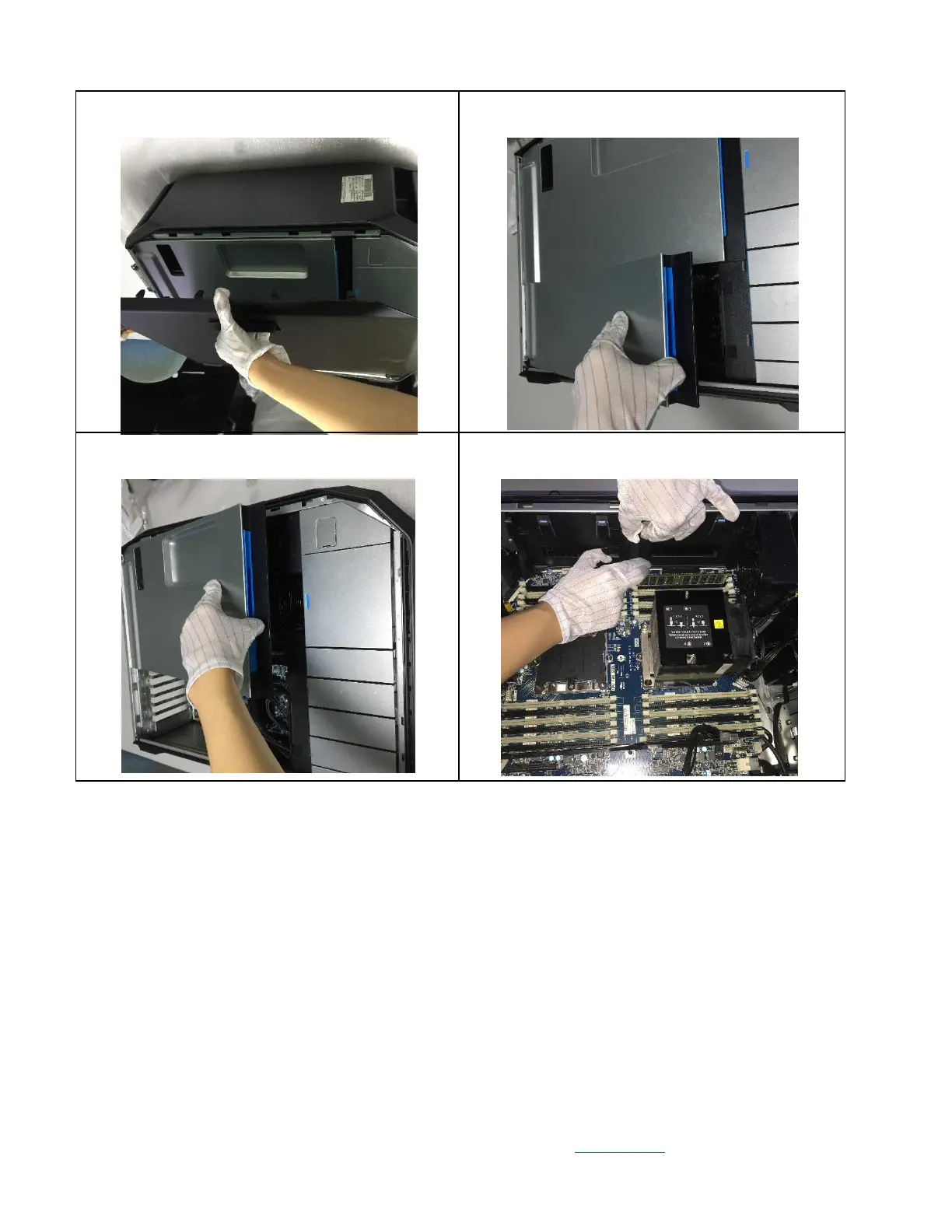

Figure1 Remove the Access Panel
Figure2 Remove the PCIe retainer
Figure3 Remove the memory fan duct
Figure4 Remove the Personality Module Guide.
