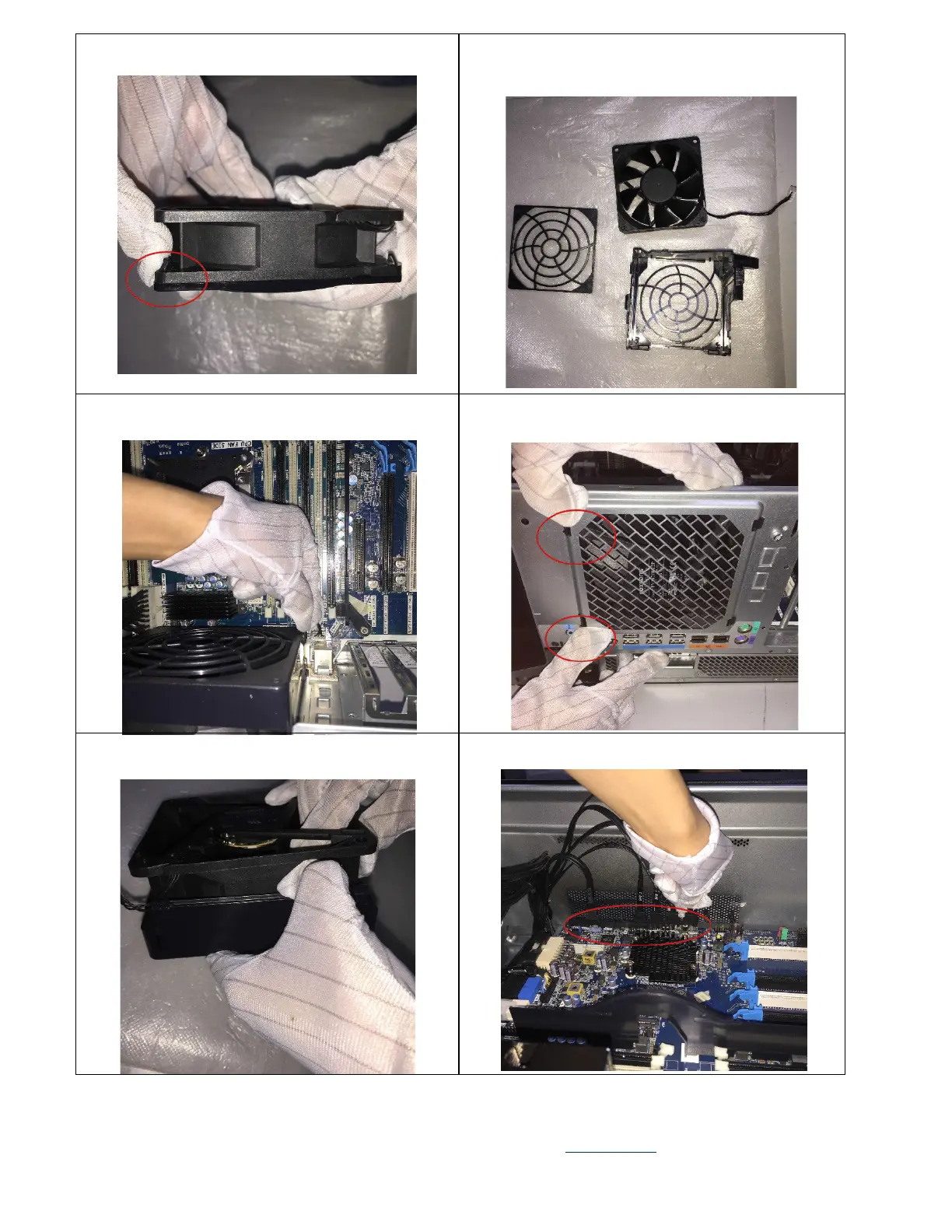

Figure15 Remove the fan guard from fan.
Figure16 Detail parts of front upper chassis fan guide
assembly.
Figure17 Disconnect rear system fan cable from ODD
Figure18 Remove the rear system fan cables from hook
Figure19 Remove the fan guard from fan guard.
Figure20 Disconnect all the SATA cable from MB.
