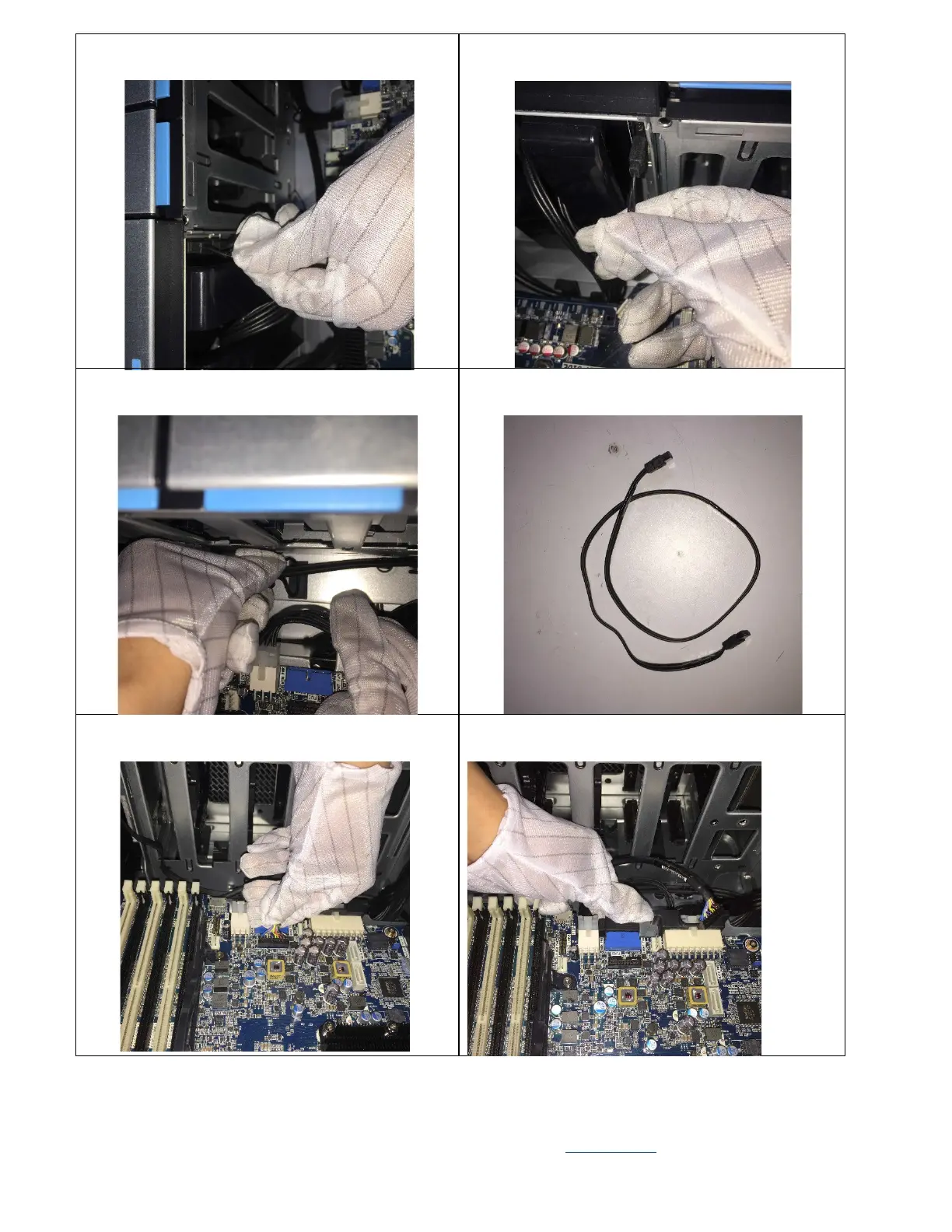

Figure21 Disconnect the ODD SATA cable from ODD.
Figure22 Disconnect the ODD Power cable from ODD
Figure23 Release the ODD SATA cable from cable clip
Figure24 The ODD SATA cable detail.
Figure25 Disconnect the FUI cable from MB.
Figure26 Remove the USB3.0 cable from MB.
