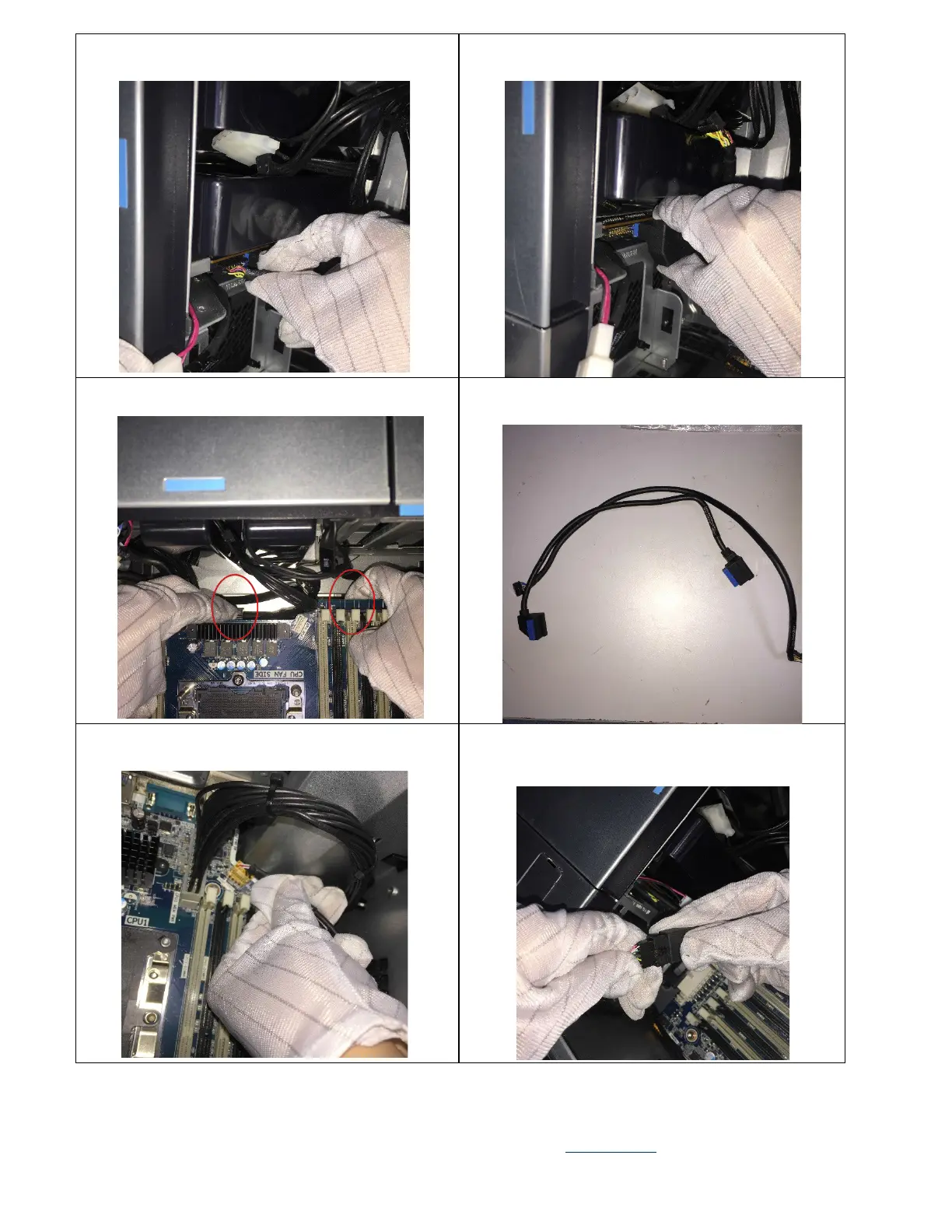

Figure27 Disconnect the FUI cable from FIO module.
Figure28 Disconnect the USB3.0 cable from FIO module.
Figure29 Unclasp the 2pcs cable clip on chassis. Figure30 Remove the FUI and USB3.0 cable from chassis.
Figure31 Disconnect the Audio Extension cable from MB
Figure32 Disconnect the Audio Extension cable from FIO
Module.
