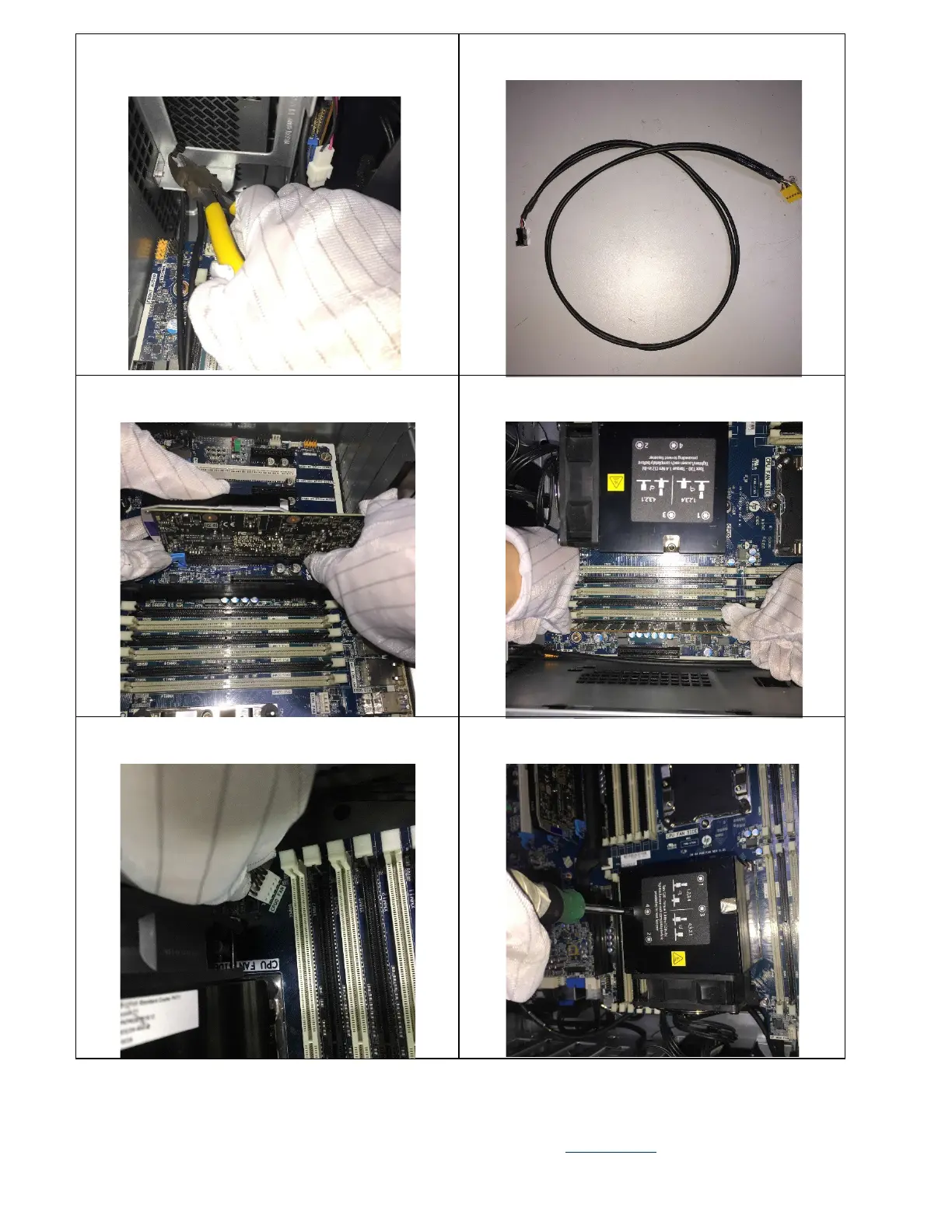

Figure33 Cutoff the cable tie on front upper chassis fan
duct bracket
Figure34 Remove the Audio Extension cable from chassis.
Figure35 Remove the graphic card from MB
Figure36 Remove the memory from MB
Figure37 Disconnect the CPU cooler cable from MB.
Figure38 Remove the CPU cooler from MB.
To Next Page
