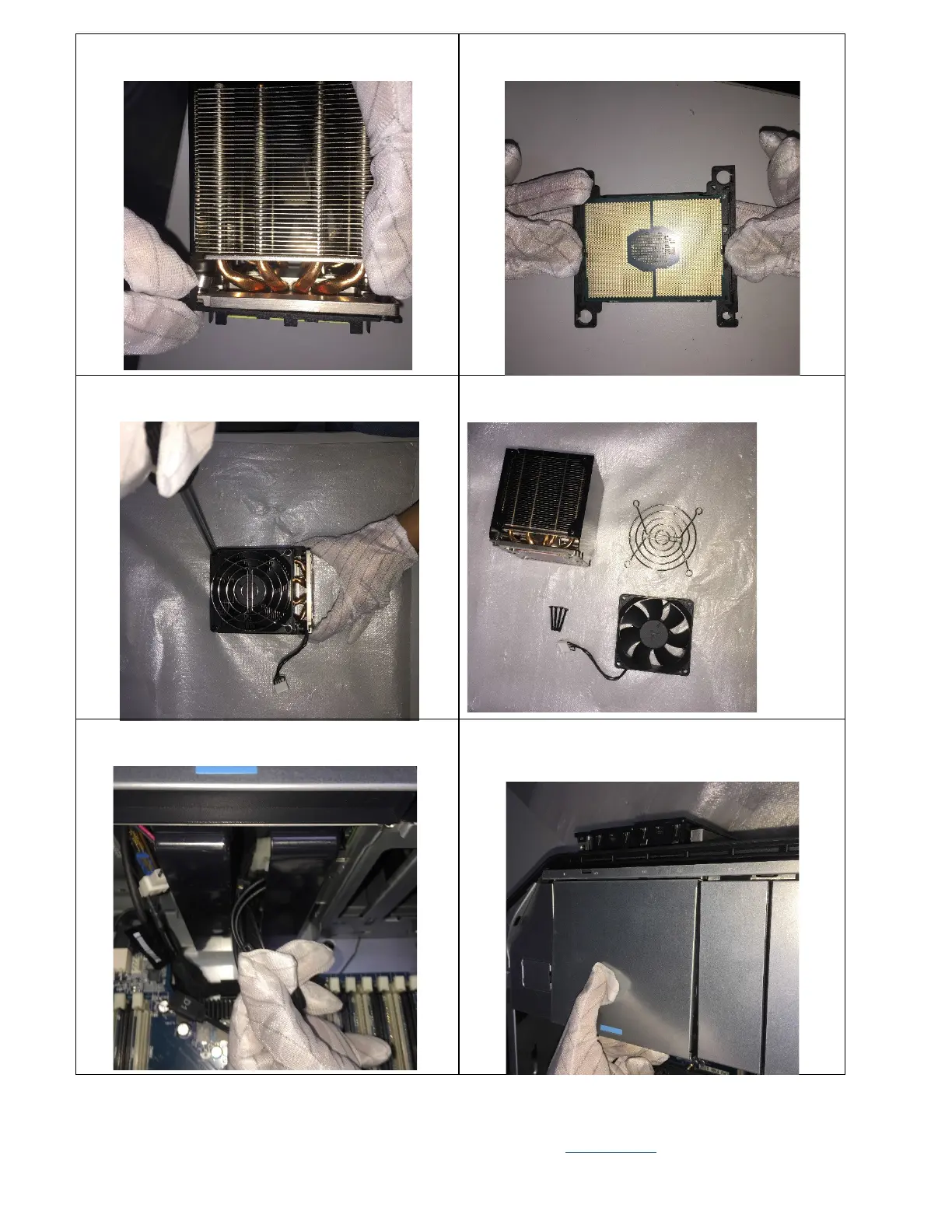

Figure39 Remove the CPU and carrier from cooler
Figure40 Remove the CPU from carrier.
Figure41 Figure38 Remove the fan from CPU cooler
Figure42 Detail parts of CPU cooler assembly.
Figure43 Drag out the ODD power cable from ODD bay.
Figure44 Remove FIO module and ODD filer(x2) and slim
ODD from chassis
To Next Page
