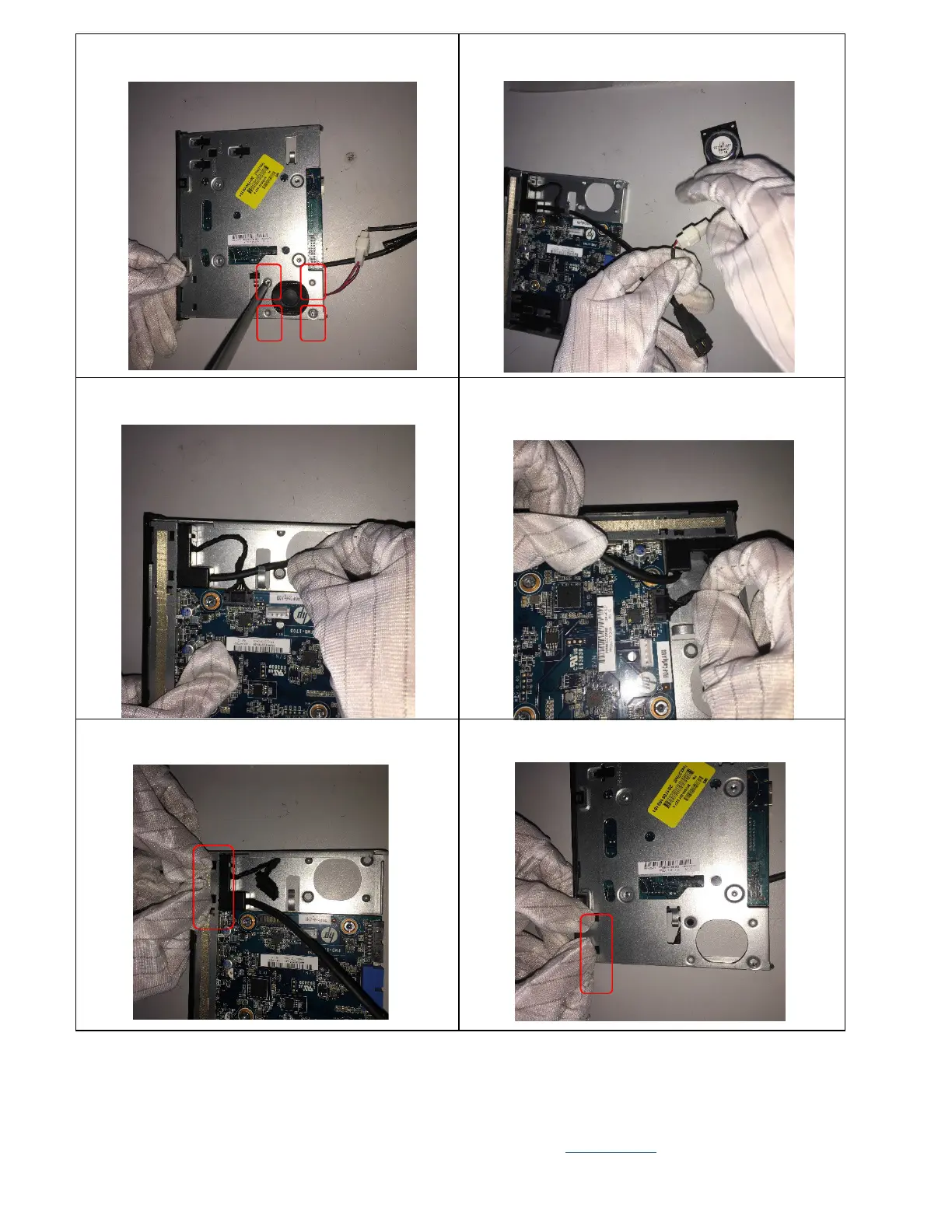

Figure45 Loosen the screws(x4) of speaker and release
speaker.
Figure46 Disconnect the Speaker cable from FIO module
Figure47 Release the Front Panel Mount cable from clip
Figure48 Disconnect the Front Panel Mount cable from FIO
PCA
Figure49 Release the Front Panel Mount cable by push
out 4 pins fixed in FIO tray.
Figure50 Release the Front Panel Mount cable by push out
4 pins fixed in FIO tray.
