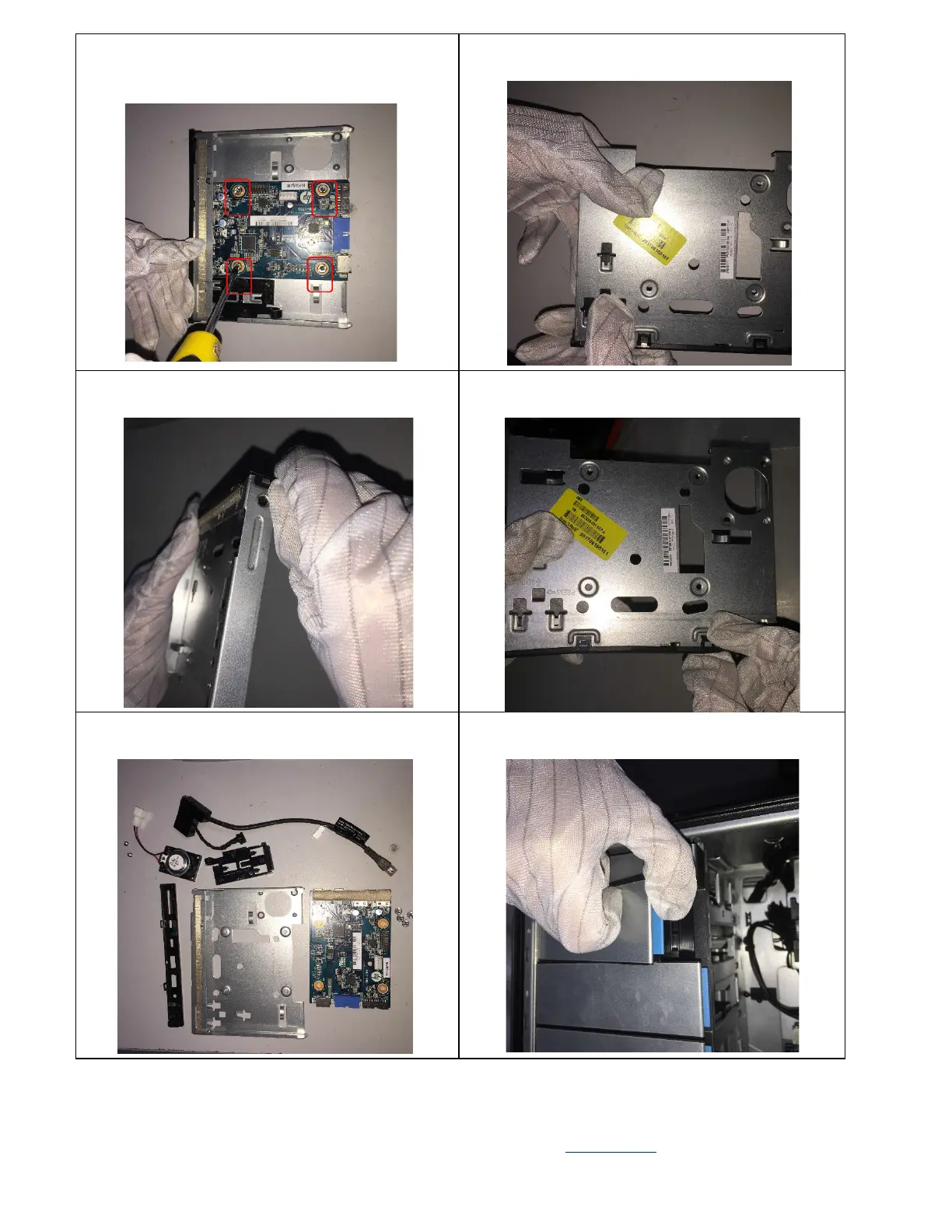

Figure51 Loose the 4pcs FIO PCA screws Figure52 Remove the SD Card Reader Carrier
Figure53 Loose the left and right side hooks of FIO panel
Figure54 Loose the 2pcs bottom side hooks of FIO panel
Figure55 Details of FIO module Assembly
Figure56 Loose the HDD bracket
