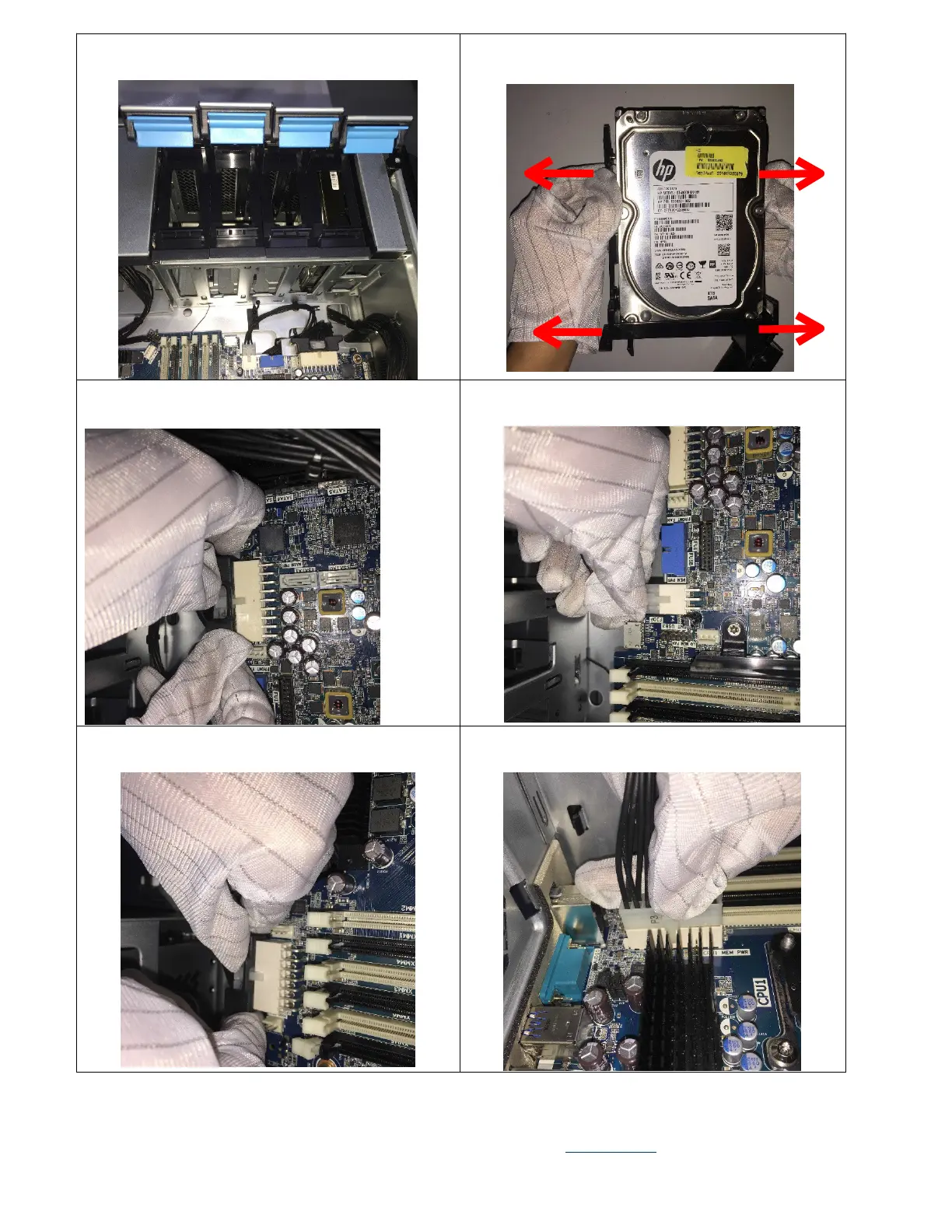

Figure57 Remove the 4pcs HDD bracket from chassis.
Figure58 Remove the HDD from HDD0 bracket by push out
the HDD bracket.
Figure59 Disconnect the P1 power connector from MB.
Figure60 Disconnect the P4 power connector from MB.
Figure61 Disconnect the P2 power connector from MB. Figure62 Disconnect the P3 power connector from MB.
To Next Page
