HP Z800 Specification

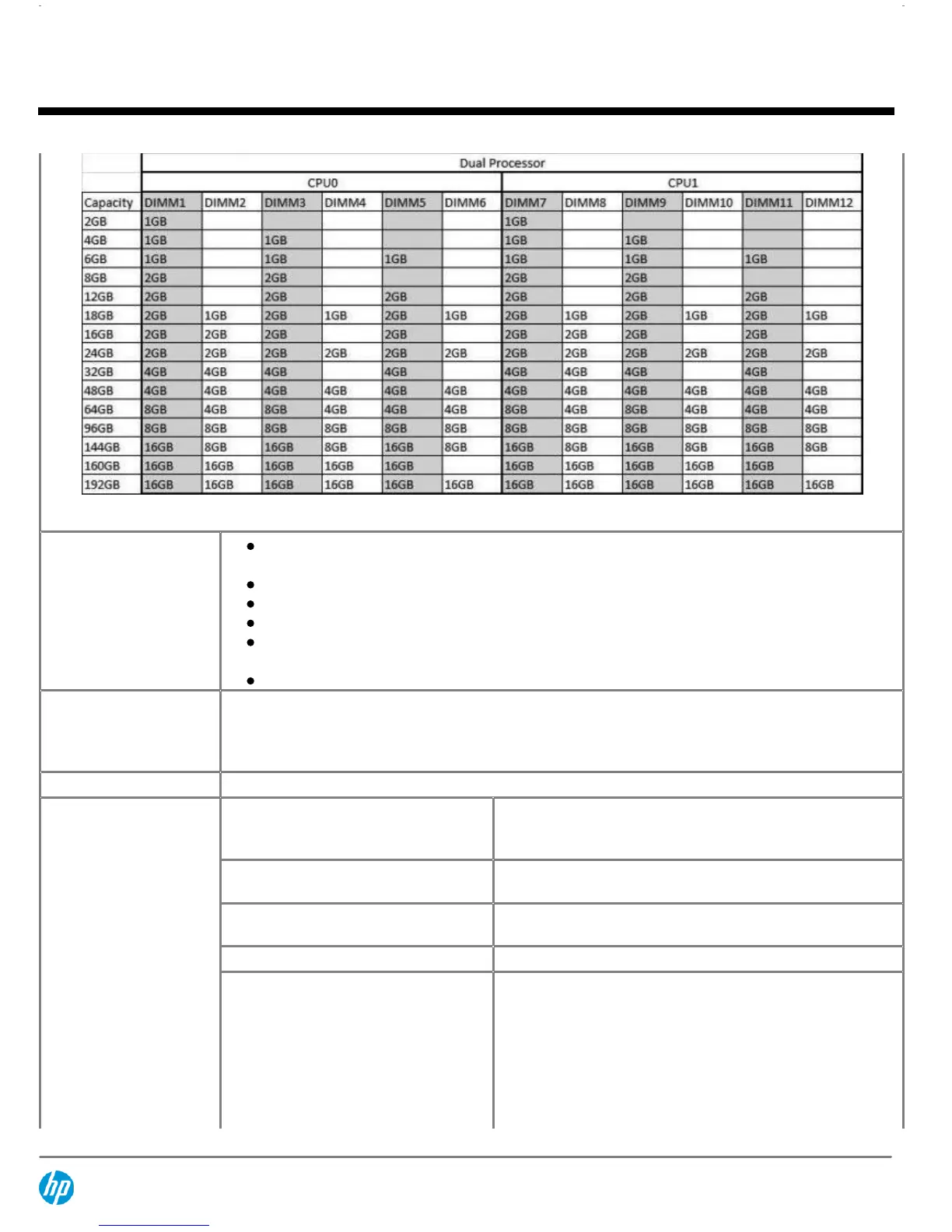

Memory Configuration
(Supported)
Not all memory configurations possible are represented below. Also, 512 MB configurations are not
supported for 64-Bit operating systems.
Only ECC DIMMs are supported.
RDIMM and UDIMM memory modules cannot be mixed in the system.
Do not install memory modules into memory slots if corresponding processor is not installed.
Dual processor configurations with memory modules installed for only one processor is not
supported.
The 4GB DIMM for Z4 and Z6 is not compatible with the Z8 4GB DIMM. They are not interchangeable.
PCI Express Connectors PCIe2 x16, qty 2
PCIe2 x16 (x8 electrical), qty 2
PCIe2 x8 (x4 electrical), qty 1
PCIe x8 (x4 electrical), qty 1
PCI Connectors (5.0V) PCI 32b, 33MHz (supports 64-bit cards), qty 1
Supported Drive
Interfaces
SATA Integrated 6-channel SATA 3.0Gb/sec controller with RAID 0, 1,
5, 10 and NCQ. (Factory integrated RAID is Microsoft Windows
only)
Serial Attached SCSI Integrated 8-channel SAS 3.0Gb/sec controller with HW RAID 0,
1, 10.
Integrated RAID SATA: RAID 0, 1, 5, 10
SAS: HW RAID 0, 1, 10
Integrated Graphics None
Network Controller Dual Controller Broadcom 5764 PCI-E LAN Controller
Memory Integrated 48KB receive buffer and 8KB transmit
buffer
Data rates supported 10/100/1000 Mb/s
Compliance IEEE 802.3, 802.3AB and 802.3u compliant, 802.3x
flow control
Bus architecture PCIe 1.0a
Data path width X1 to each controller
QuickSpecs
HP Z800 Workstation
System Technical Specifications
DA - 13278 North America — Version 56 — November 21, 2013 Page 17

HP Z800 Specifications

General

Processor cache	8 MB
Processor model	E5560
Processor frequency	2.8 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor front side bus	1333 MHz
Number of processors installed	2
Audio system	Integrated High Definition Realtek ALC262 Audio, optional Creative X-Fi Titanium PCIe Audio Card, optional HP Thin USB Powered Speakers
Product type	Workstation
Motherboard chipset	Intel® 5520
ECC	Yes
Maximum internal memory	192 GB
HDD speed	15000 RPM
HDD capacity	446 GB
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD Super Multi
Card reader integrated	No
I/O ports	Front: 3 USB 2.0, 1 IEEE 1394a, 1 microphone in, 1 headphone out; Rear: 6 USB 2.0, 1 IEEE 1394a, 1 audio in, 1 audio out, 1 microphone in, 2 PS/2, 2 RJ-45 to integrated Gigabit LAN, 1 serial; Internal: 3 USB 2.0
Headphone outputs	1
USB 2.0 ports quantity	9
Parallel ports quantity	0
Power supply	1110 W
Power consumption (typical)	240 W
Non-operating altitude	9100 m
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	8 - 90 %
Operating relative humidity (H-H)	8 - 85 %
Display	HP LP1965 19-inch LCD Monitor, HP LP2065 20-inch LCD Monitor, HP LP2275w 22-inch Widescreen LCD Monitor, HP LP2475w 24-inch Widescreen LCD Monitor, HP DreamColor LP2480zx Professional Display (24-inch widescreen), HP LP3065 30-inch Widescreen LCD Monitor (all sold separately)
Drive bays	3 external 5.25\
Graphics card	-
Keyboard type	HP PS/2 Standard Keyboard
Expansion slots	1 PCI, 1 PCI Express Gen1 (x8 mechanically, x4 electrically), 1 PCI Express Gen2 (x8 mechanically, x4 electrically), 2 PCI Express Gen2 (x16 mechanically, x8 electrically), 2 PCI Express Gen2 x16
Pointing device	HP USB Laser Scroll Mouse
Power requirements	1110 watts wide-ranging, active Power Factor Correction, direct connection Power Supplies
Storage drive type	300 GB 15000 rpm SAS 146 GB 15000 rpm SAS SAS 146 GB + 300 GB
HDD controller type	SATA (10000 rpm) SATA (7200 rpm) SAS (15000 rpm)
Video card features	No integrated Graphic Card
Maximum HDD capacity	450 GB
Storage drive controller	Integrated 6 channel SATA 3 Gb/s controller with RAID (0, 1, 5 or 10) capability, integrated 8 channel SAS controller with RAID (0, 1 or 10) capability, optional LSI 8888 ELP 8-port SAS HW with RAID (0, 1, 5 or 10) capability
Minimum storage drive space	146 GB
Operating system installed	Windows Vista Business
Compatible operating systems	HP Installer Kit for Linux
Chassis type	Mini Tower
Country of origin	China

Weight and Dimensions

Depth	526.5 mm
Width	203.5 mm
Height	445.1 mm
Weight	19500 g
