Technical white paper | HP ZBook 15 G2 Mobile Workstation
Introduction to M.2 interface and form factor
M.2 is a specication for internally mounted computer expansion cards and associated connectors. Through dierent
keying the M.2 specication supports multiple functions for add-in cards including such devices as WLAN (Wi-Fi), 3G/
LTE (WWAN), and solid-state drives (SSDs). Exposed buses through M.2 are SATA, PCI Express 3.0, SATA 3.0, and USB 3.0
buses. M.2 storage devices replace mSATA with a denser, more exible physical specication that is most suitable for
SSDs, especially when utilized in small devices.

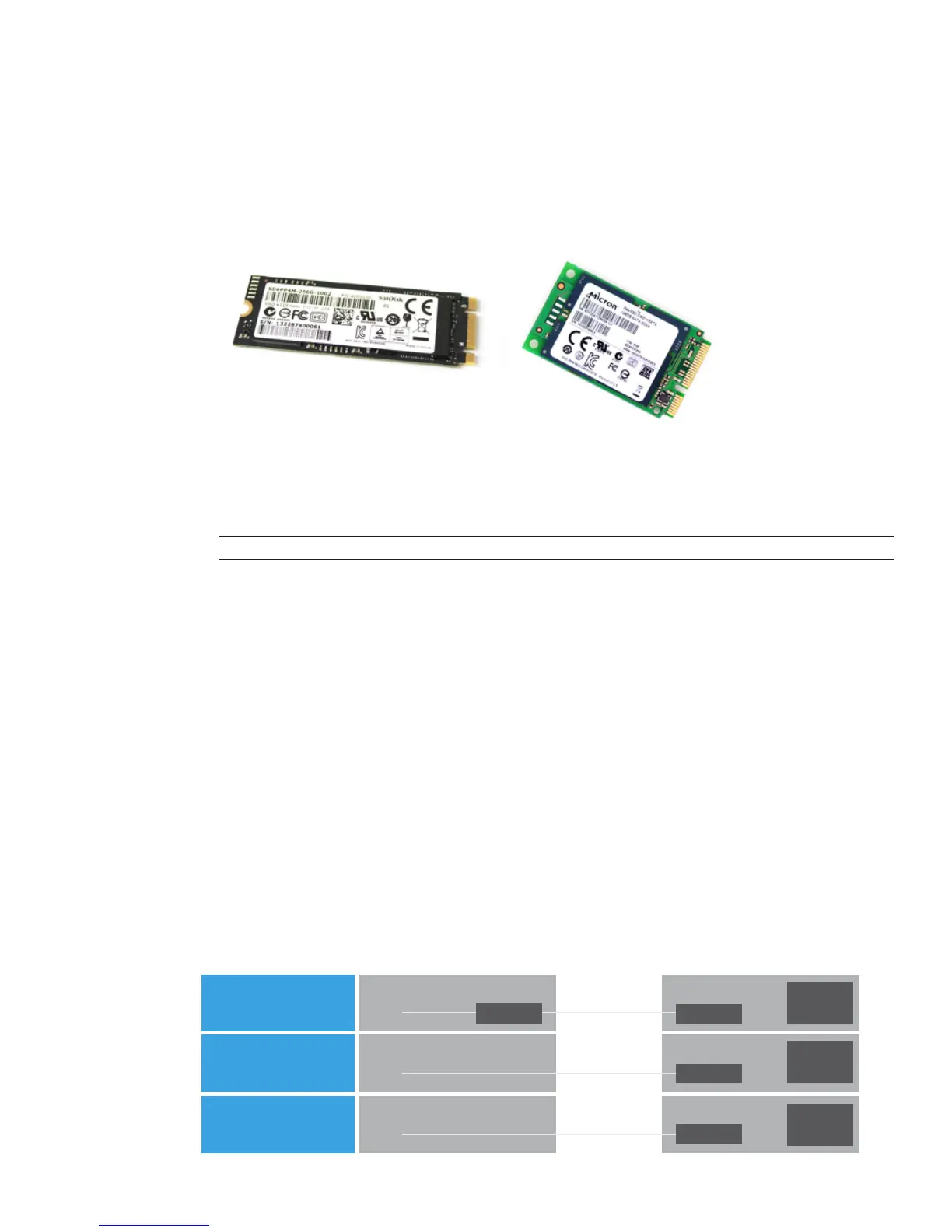

M.2 PCIe SSD mSATA SSD
M.2 benets and features
• Maximizes usage of card space
– Physical dimension specication comparison between mSATA and M.2
mSATA M.2
Board Area (mm) 30 x 50.95 22 x 30, 22 x 42, 22 x 60, 22 x 80, 22 x 110
– Longer modules and double-sided components population allows double the storage capacity within the footprint of
mSATA SSD devices.
• Four PCI Express lanes and one SATA 3.0 6 Gb/s port accessed through same connector.
– Compatibility to legacy storage interface (SATA).
– Same form-factor and interface provides path to the PCIe storage devices of the future.
• Reduces bottlenecks by connecting directly to the PCIe bus thus providing an excellent solution for those with large les
and big data workows.
– Bandwidth to the SSDs increases due to lane aggregation
– Simpler storage hierarchy reduces latency
• Three storage interface options – M.2 provides a path from today’s technology to tomorrow’s.
– AHCI: Enables smooth transition to PCIe SSD storage devices. Through the use of existing driver, they can easily
transition to this new interface and enjoy the advantages.
– NVMe: Future implementation designed specically for non-volatile memory, the new NVMe controller provides:
• Lower latency
• Lower command overhead
• Exploits the parallelism available in modern host HW and SW
Past/Now
PCH
PCIe
PCIe
PCIe
SSD
PCH SSD
PCH SSD
Now/2015
2015/2016
NAND
ARRAY
NAND
ARRAY
NAND
ARRAY
SATA
AHCI
AHCI
NVMe
SATA
PCIe
PCIe

HP ZBook 15 G2 Specifications

General

Form factor	Clamshell
Product type	Mobile workstation
Product color	Black
Country of origin	China
Bus type	DMI
Stepping	C0
Tjunction	100 °C
Processor cache	3 MB
Processor cores	2
Processor model	i5-4210M
System bus rate	5 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-4200 Mobile series
Processor socket	PGA946
Processor threads	4
Processor codename	Haswell
Processor frequency	2.6 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	37 W
Maximum number of PCI Express lanes	16
Motherboard chipset	Intel® QM87
Memory slots	2x SO-DIMM
Internal memory	4 GB
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR3L-SDRAM
Maximum internal memory	16 GB
Memory layout (slots x size)	1 x 4 GB
HDD speed	7200 RPM
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	750 GB
Compatible memory cards	SD, SDHC, SDXC
Panel type	SVA
Display surface	Matt
Display diagonal	15.6 \
Native aspect ratio	16:9
On-board graphics card ID	0x416
Discrete graphics card model	NVIDIA® Quadro® K610M
On-board graphics card model	Intel® HD Graphics 4600
Discrete graphics card memory	1 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	400 MHz
On-board graphics card DirectX version	11.1
Number of discrete graphics cards supported	1
On-board graphics card dynamic frequency (max)	1150 MHz
Audio system	DTS Studio Sound HD
Front camera resolution	1280 x 720 pixels
WWAN	Not installed
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Charging port type	DC-in jack
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Pointing device	Touchpad
Operating system installed	Windows 7 Professional
Processor code	SR1L4
Processor ARK ID	81012
Intel TSX-NI version	0.00
Processor package size	37.5 x 37.5 x 4.7 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00
Battery capacity	75 Wh
Number of battery cells	8
AC adapter power	150 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V
Cable lock slot type	Kensington
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR

Weight and Dimensions

Depth	257 mm
Width	381.5 mm
Height	30.5 mm
Weight	2780 g
