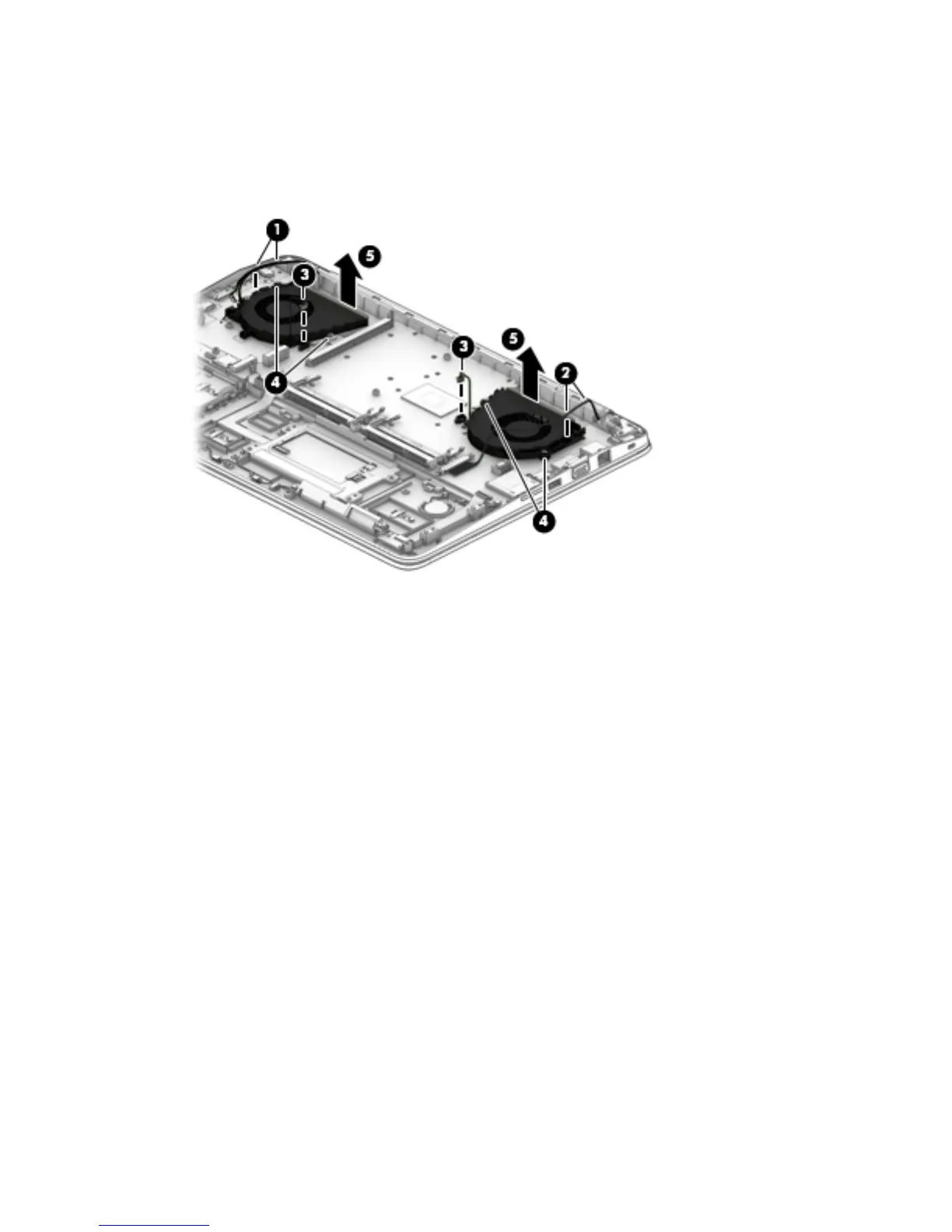

a. Remove the antenna cable from the clips in the fan (2).
b. Disconnect the fan cable from the system board (3).
c. Loosen the two captive Phillips screws that secure the fan to the computer (4).
d. Remove the fan assembly (5).
Reverse this procedure to install the fan.
52 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
