Lock bracket
Before removing the lock bracket, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 29).
5. Disconnect the battery (see Battery on page 31).
6. Disconnect the display assembly (see Display assembly on page 67).

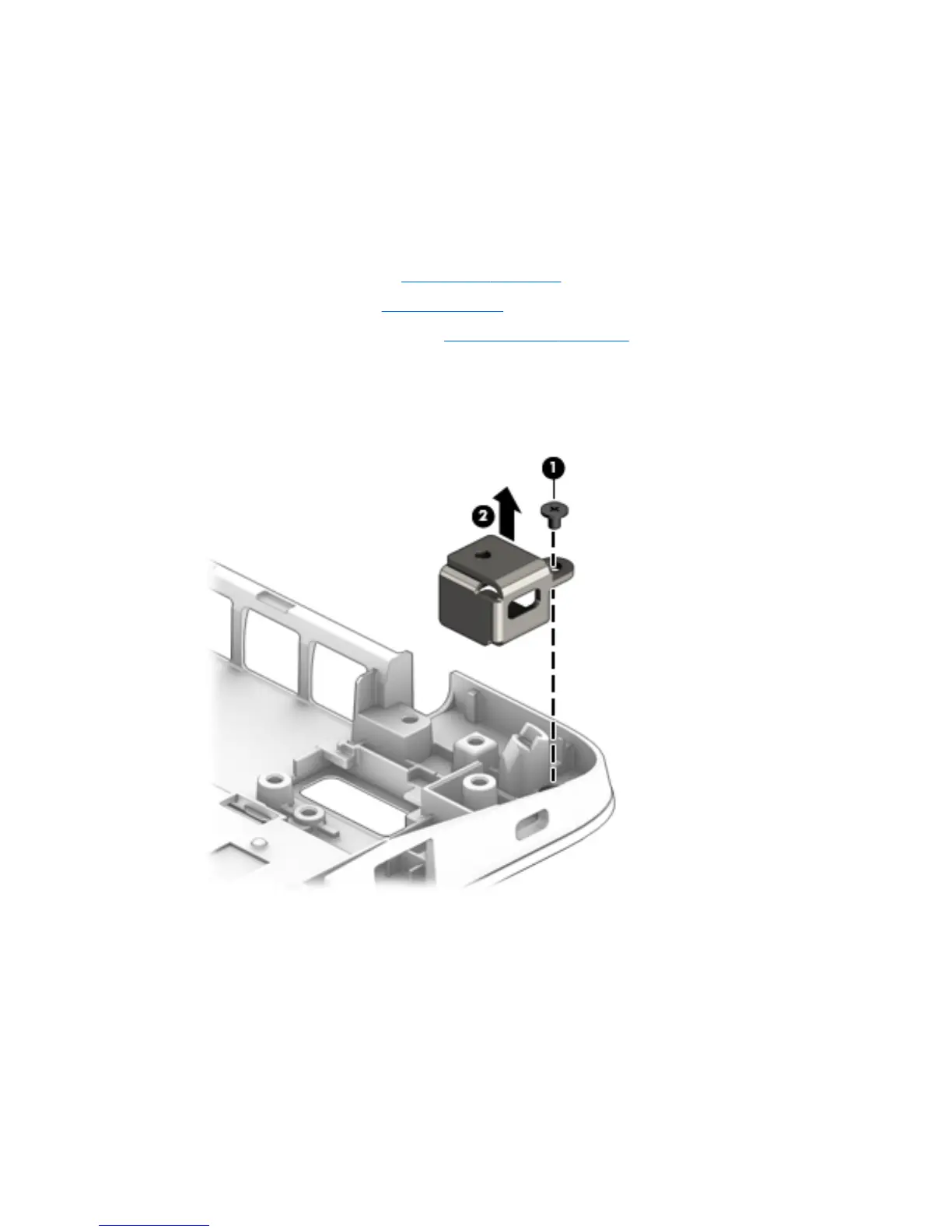

Remove the lock bracket:
1. Remove the Phillips PM2.5×5.0 screw (1) that secures the lock bracket to the base enclosure.
2. Remove the bracket (2).
Reverse this procedure to install the lock bracket.
Component replacement procedures 75
