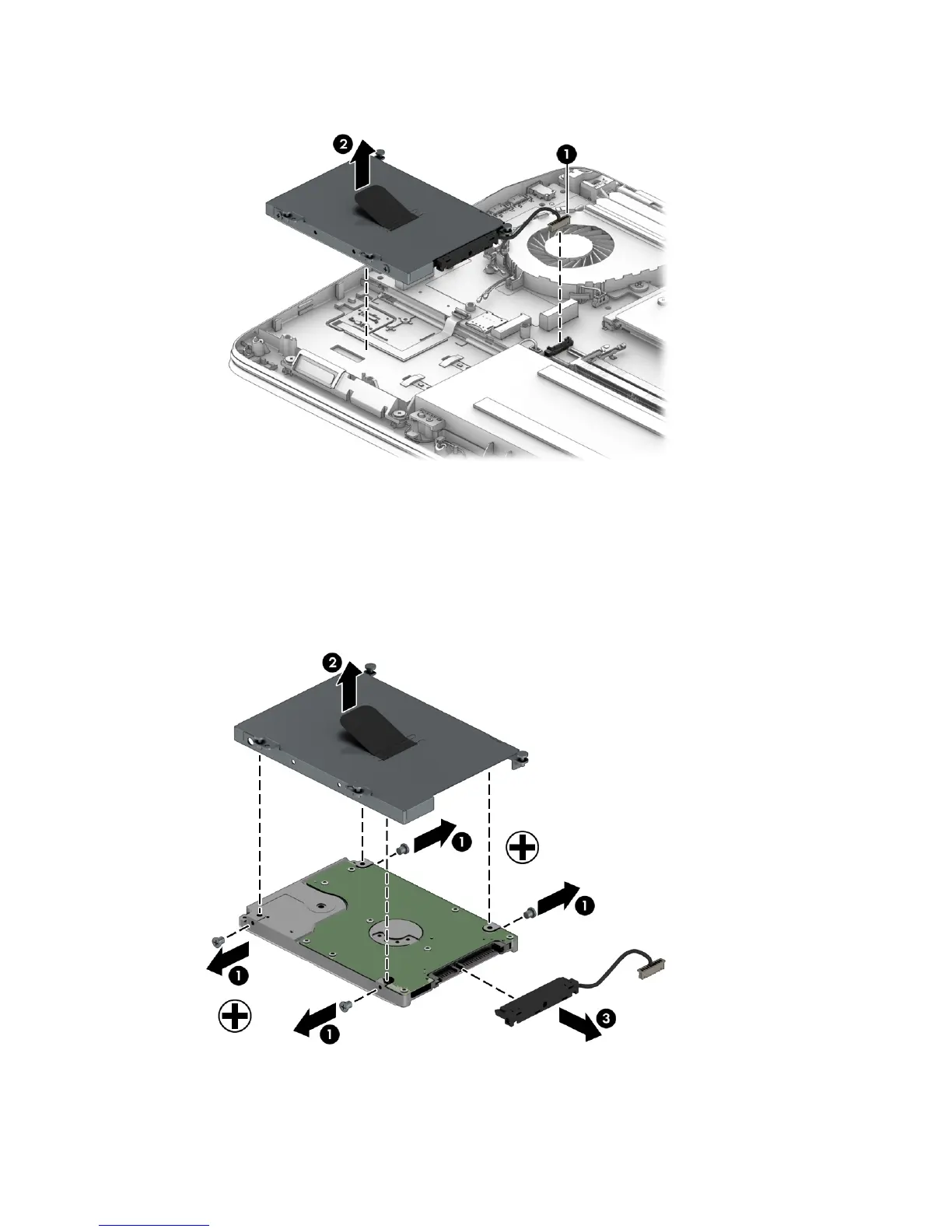

2. Lift the hard drive (2).
3. If it is necessary to disassemble the hard drive, perform the following steps:
a. Remove the four Phillips PM3.0×3.0 screws (1) that secure the hard drive bracket to the hard drive.
b. Remove the hard drive bracket from the hard drive (2).
c. Remove the hard drive connector and cable from the hard drive (3).
The hard drive bracket and screws are available in the Hard Drive Hardware Kit, spare part number
848231-001.
Reverse this procedure to install the hard drive.
Component replacement procedures 55
