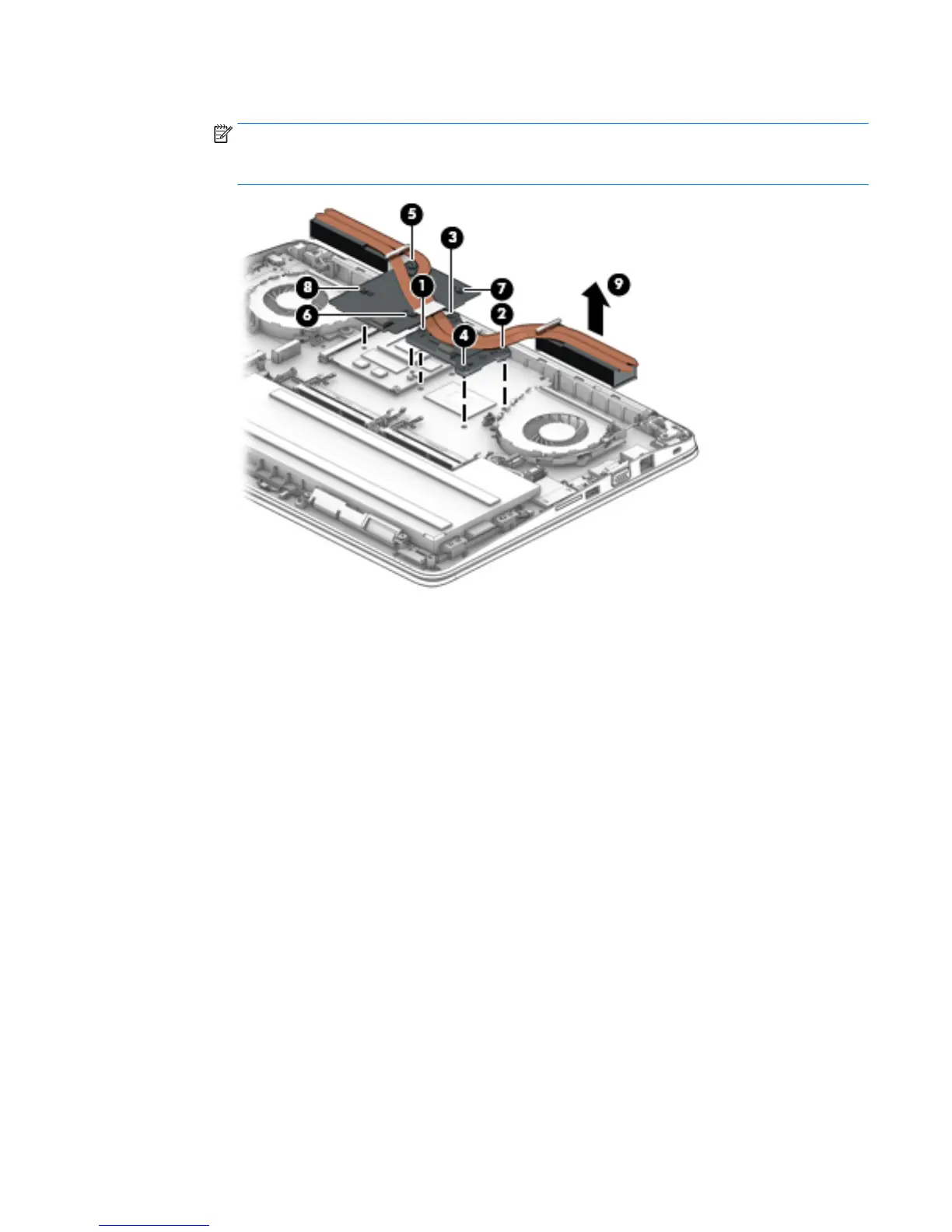

c. Remove the fan/heat sink assembly (9).
NOTE: Due to the adhesive quality of the thermal material located between the fan/heat sink
assembly and the system board components, it may be necessary to move the heat sink assembly
from side to side to detach it.
2. On models with UMA graphics memory:
a. Following the (1) through (4) sequence stamped into the processor heat sink, loosen the four
Phillips captive screws that secure the processor heat sink to the system board.
Component replacement procedures 59
