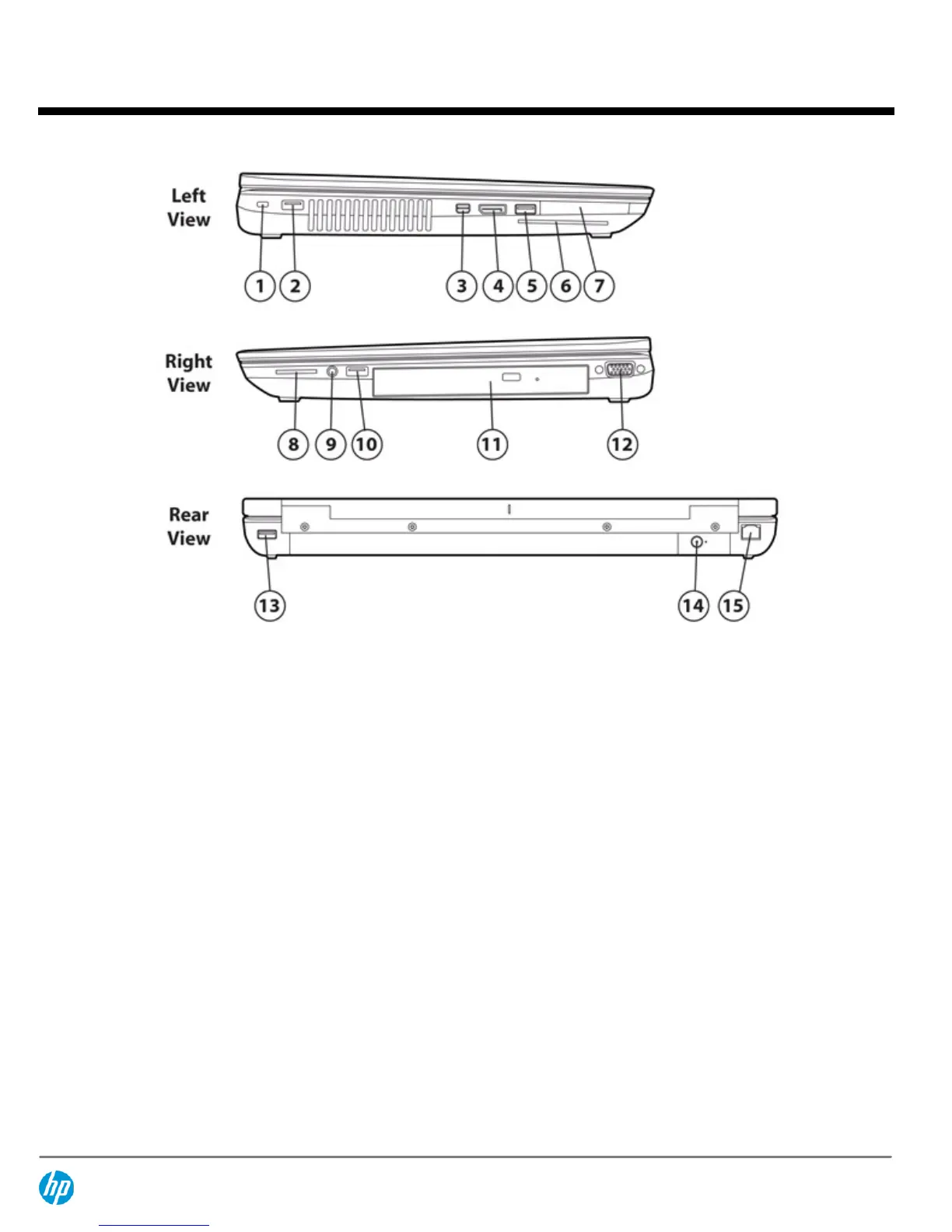

1.
Security cable slot
9.
Audio-out (headphone) jack/Audio in (microphone) jack
2.
USB 2.0 port
10.
USB 3.0 port
3.
Thunderbolt port*
11.
Optical drive (select models only)
4.
DisplayPort
12.
External monitor port
5.
USB 3.0 charging port
13.
USB 3.0 port
6.
Smart card reader
14.
Power connector
7.
ExpressCard port
15.
RJ-45 (network) jack/lights (2)
8.
Memory card reader
* Thunderbolt is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device to the
Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with Windows. To determine
whether your device is Thunderbolt Certified for Windows, see
https://thunderbolttechnology.net/products
.
QuickSpecs
HP ZBook 15 Mobile Workstation
Overview
DA - 14722 North America — Version 7 — January 9, 2014
Page 2
