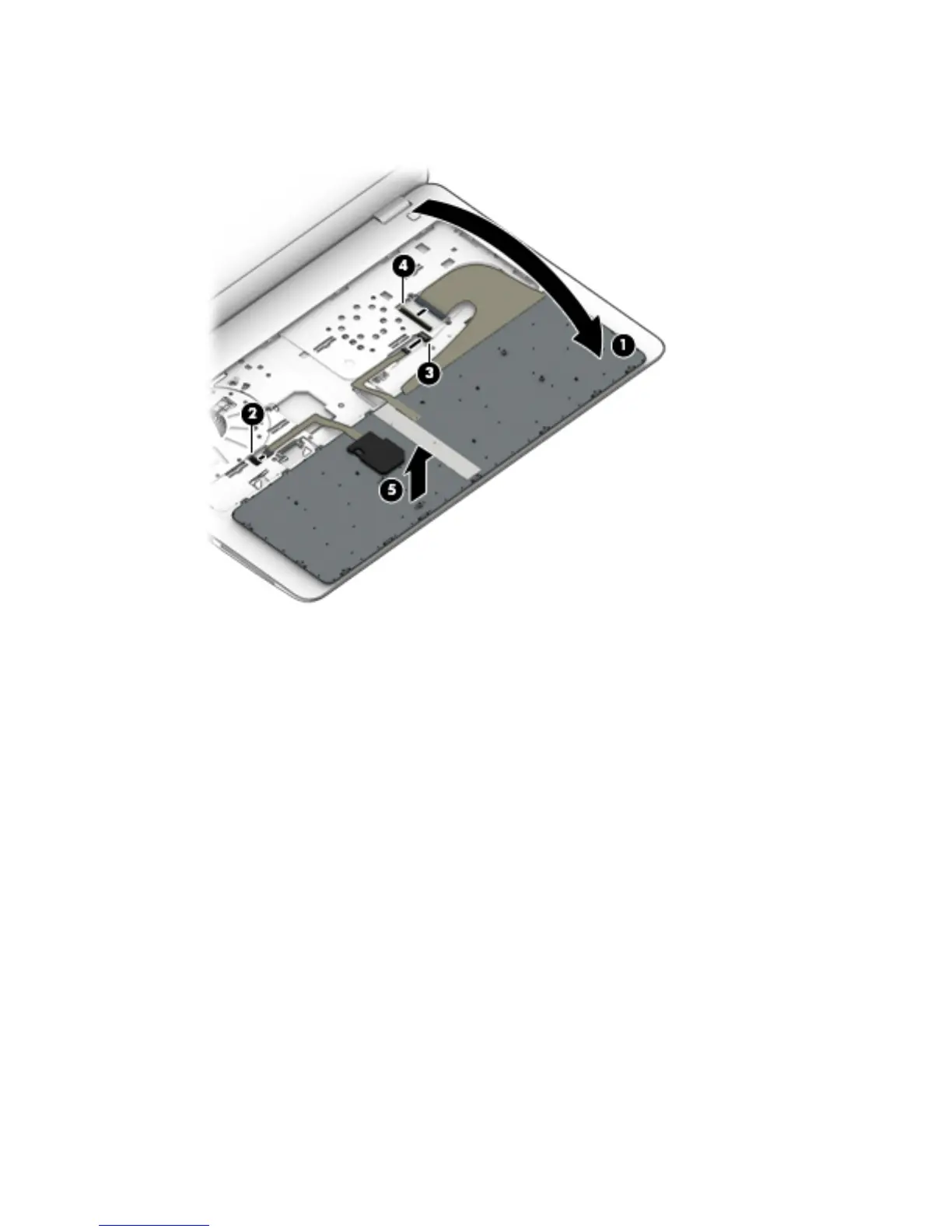

5. Slide the keyboard slightly downward toward the palm rest to disengage the top of the keyboard from
the top cover (1). Remove the keyboard backlight cable (2), pointing stick cable (3), and keyboard cable
(4).
6. Remove the keyboard (5).
Reverse this procedure to install the keyboard.
Component replacement procedures 53
